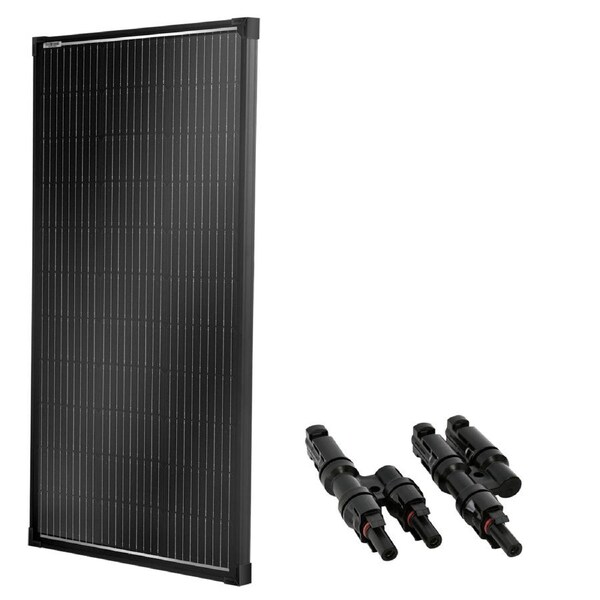

100W Solar Panel Fixed Black Frame + MC4 Y-Branch Connector
- Max Power: 100W
- Max Power Voltage (Vmp): 18.74V
- Max Power Current (lmp): 5.34A
- Open-Circuit Voltage (Voc): 22.86V
- Short-Circuit Current (Isc): 5.61A
- Max System Voltage: 1000V
- Max Series Fuse Rating: 15A
- Module Efficiency STC (%): 18.9%
- Cell Efficiency: 22%
- Power Tolerance: 0-5W
- Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
- Working Temperature: -40°C-85°C
- Temperature Coefficients of Pmax: -0.34%℃
- Temperature Coefficients of Voc: -0.265%℃
- Temperature Coefficients of lsc: +0.05%℃
- Nominal Operating Cell Temperature (NOCT): 45±2°C
- Type: Fixed
- Solar Cell: Monocrystalline Grade A
- Cell Tech: PERC
- Panel Leads (Pair-AWG): 2.5mm²
- Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
- Tie Down Points: Yes, 4 Points
- Frame: Anodized Aluminium Alloy
- IP Rating: IP65
- Certifications: CE, ISO
- Warranty: 5 Years
- Product Dimensions: L980xW540xH30mm
- Package Dimensions: L1000xW560xH45mm
- Net Weight: 5.6kg
- Gross Weight: 6.5kg
- 1x 100W Fixed Solar Panel Black Frame
Product 2: MC4 Y-Branch Connector
- Insulation Material: PPO
- Color: Black
- Temperature Range: -40°C to +90°C
Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
