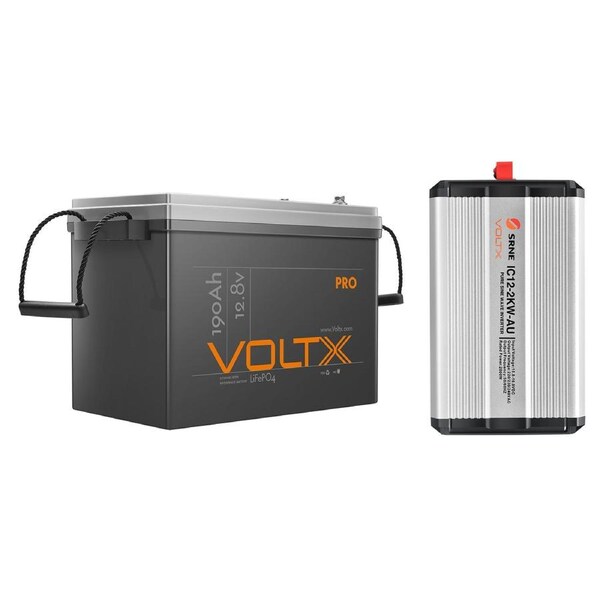

VoltX 12V 190Ah Lithium Battery + 12V 2KW Inverter

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 190Ah
• Rated Energy: 2432Wh
• Approx Life Cycles: 4000
• Battery Manage System: 150A
• Standard Charging Current: 50A
• Max. Charging Current: 150A
• Standard Discharge Current: 150A
• Max. Continuous Discharge Current: 150A
• Max. Discharge Current 5 sec: 300A

• Charger: 14.6V 50A
• Charging Voltage: 14.6V
• Absorption Voltage: 14.2-14.6V
• Float Voltage: 13.8V
• Overcharge Protection: 14.4V
• Overcharge Recovery: 14V
• Overdischarge Protection: 10.8V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: CALB Prismatic
• Cell Grouping: 4S1P
• Parallel Connection: Max 4
• Series Connection: No
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Pro 190Ah
• Certifications: IEC 62619
• Warranty in Years: 5

• Product Size: L345 x W190 x H245mm
• Package Size: L422 x W242 x H305mm
• Net Weight: 17.5kg
• Gross Weight: 18.5kg

• 1x VoltX Pro 190Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

Rated output power:2000W
• Rated output power VA:2000VA
• Withstand instantaneous impact power:4000W
• Rated output voltage:220VAC/230VAC/240VAC(±3%)
• Output frequency:50/60HZ(±0.2%)
• Output wave:Pure sine wave
• Output harmonic component: THDV < 3% (pure resistance load)
• Load power factor:0.2-1 (load power ≤ output continuous power)
• Rated input voltage: 12VDC
• Input voltage range:10.8~16.0VDC
• Rated output efficiency: >89.0%
• Maximum output efficiency:> 92% (30% overload)
• Standby current:<0.24A
• No-load current:<1.0A
• USB interface:Dual USB output, 5VDC/2A
• ON/OFF/ECO mode:ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
• ECO starting power:<30W
• ECO interval time:1min
• TTL interface:Non-isolated TTL communication, power supply 12.5V/200mA
• Indicator:Green - normal operation; Red - fault
• External switch contact interface:Switch on or off by control equipment such as external relay and mechanical switch
• Protection function:Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
• Operating ambient temperature:-20°C~60°C
• Storage ambient temperature:-35°C~80°C
• Relative humidity:≤95%
• Protection grade:IP20
• Heat-dissipating method:Natural heat dissipation + intelligent air cooling
• Noise:≤60dB
• Net weight:6.5kg
• Warranty : 3 Years
