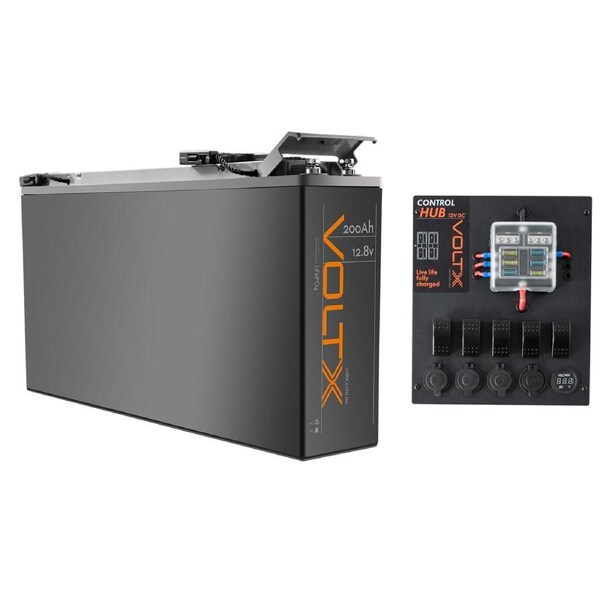

VoltX Slim 12V 200Ah Lithium Battery + Control Box 2x USB

• Quick Look


• Capacity: 12.8V 200Ah
• Rated Energy: 2560Wh
• Approx Life Cycles: 4000
• Battery Manage System: 150A
• Product Size: L552 x W110 x H290mm


• Tech Specs


• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Rated Energy: 2560Wh
• Approx Life Cycles: 4000
• Battery Manage System: 150A
• Standard Charging Current: 75A
• Max. Charging Current: 150A
• Standard Discharge Current: 150A
• Max. Continuous Discharge Current: 150A
• Max. Discharge Current 5 sec: 300A


• Charger: 14.4V 75A
• Charging Voltage: 14.2-14.6V
• Absorption Voltage: 14.4V
• Float Voltage: 13.8V
• Overcharge Protection: 14.6V
• Overcharge Recovery: 14.2V
• Overdischarge Protection: 10V
• Overdischarge Recovery: 10.6V


• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: Prismatic
• Cell Grouping: 4S2P
• Parallel Connection: Max 6
• Series Connection: Max 6
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Slim 200Ah
• Certifications: IEC,FCC,UN38.3,CE
• Protection Class: IP65
• Warranty in Years: 5


• Dimensions & Weight


• Product Size: L552 x W110 x H290mm
• Package Size: L615 x W175x H333mm
• Net Weight: 20.5kg
• Gross Weight: 22kg


• Package List


• 1x VoltX Slim 200Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

Product 2: Switch Panel ON-OFF Control Box (Connect 12 Devices)


• Specifications


• USB: 2*USB with led lights (2.1A&1A)
• Cigarette socket: 3*maximum 10A per socket
• Switch: 5*15A circuit breaker
• Anderson plug: 2*50A
• Fuse box: 3*15A+3*20A
• NW(kg): 1.9
• GW(kg): 2.2
• Dimension (product)cm: 27.5*23.5*8.5
• Dimension (box)cm: 29.5*24.5*12.5
• Warranty: 1 year
