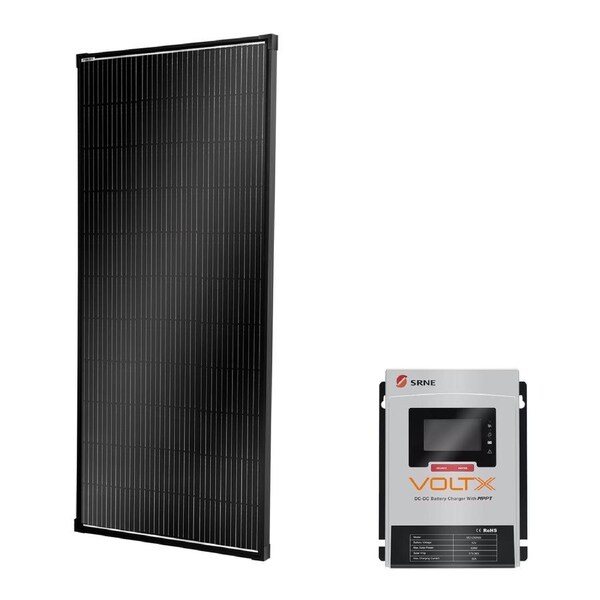

200W Solar Panel Fixed Black Frame + 30A DC-DC Charger

• Max Power: 200W
• Max Power Voltage (Vmp): 18.74V
• Max Power Current (lmp): 10.41A
• Open-Circuit Voltage (Voc): 22.86V
• Short-Circuit Current (Isc): 10.93A
• Max System Voltage: 1000V
• Max Series Fuse Rating: 15A
• Module Efficiency STC (%): 19.66%
• Cell Efficiency: 23%
• Power Tolerance: 0-5W
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -40°C-85°C
• Temperature Coefficients of Pmax: -0.34%℃
• Temperature Coefficients of Voc: -0.28%℃
• Temperature Coefficients of lsc: +0.05%℃
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Fixed
• Solar Cell: Monocrystalline Grade A
• Cell Tech: PERC
• Panel Leads (Pair-AWG): 2.5mm²
• Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
• Tie Down Points: Yes, 4 Points
• Frame: Anodized Aluminium Alloy
• IP Rating: IP65
• Certifications: CE, ISO
• Warranty: 5 Years

• Product Dimensions: L1480xW670xH35mm
• Package Dimensions: L1500xW690xH50mm
• Net Weight: 11kg
• Gross Weight: 11.9kg

• 1x 200W Fixed Solar Panel Black Frame

• Model: MD1230N05
• Backup Battery System Voltage: 12V
• Backup Battery Voltage Range: 9~16V DC
• Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
• Rated Charging Current: 30A
• Maximum PV Input Voltage: 55V DC
• Max. power point voltage range: 17~36V
• Maximum PV Input Current: 27A
• Solar Panel Charging Mode: Buck MPPT
• MPPT Efficiency:>99%
• PV input power is recommended: 400W
• Generator (Starter Battery) System Voltage:12/24V
• Starter Battery Type: Lead-acid Battery
• Maximum Generator Input Voltage: 32V DC
• Maximum Generator Input Current:35A
• Conventional Generator: 13.2~16V/26.4~32V DC
• Intelligent (Euro 6 Standard) Generator: 12~16V/24~32V DC
• Generator charging mode: Buck , Boost , Buck-Boost
• 12V Backup Battery:400W
• Charging Voltage: 13.8V
• Charging Current: ≤15A
• No-load loss: <0.6W
• Maximum Charging Conversion Efficiency: 98%
• Communication method: TTL
• Operating temperature: -35°C~65°C
• Altitude: ≤3000m
• Waterproof level: IP32
• Product dimensions: 221*175.8*82.4mm
