Overview

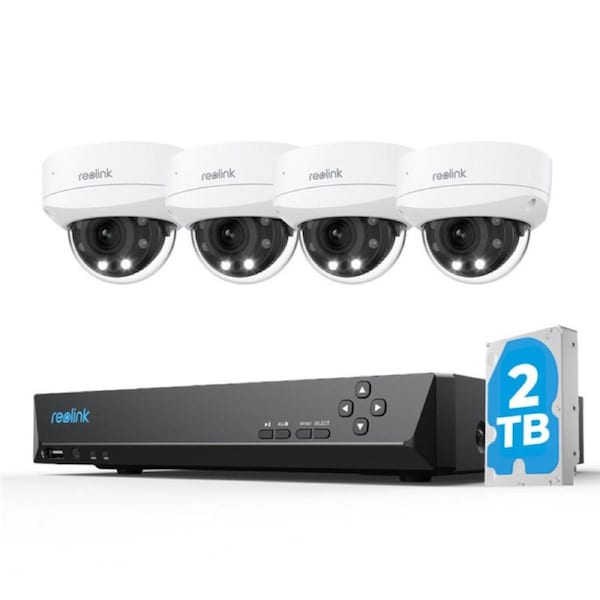

This is a 4K 8MP surveillance system featuring 5× optical zoom. It includes a 8-channel NVR with 2TB HDD and 4pcs of 8MP PoE cameras rated IK10 vandal-proof. This system also supports up to 16TB storage capacity, spotlight color night vision, smart detection, and two-way audio.
Features and Details
Flawless 4K. No Glare.
Experience vivid, high-definition imagery that captures every detail with precision, day or night. With four 4K cameras, this system delivers crisp, glare-free footage that ensures nothing escapes your watchful eye, whether monitoring indoors or outdoors.
See Further and Clearer
Say goodbye to pixelated details with the advanced 5× optical zoom capability. Whether you're monitoring vast outdoor areas or focusing on specific subjects, this feature ensures nothing goes unnoticed by magnifying every fine detail without compromising clarity.
*39° - 123° Viewing Angle
*2.7mm - 13.5mm Motorized Lens
See in Color, Even at Night
Rest easy at night with three night vision options. With customizable spotlights, choose to capture full-color footage all night long or only when motion is detected. For discreet surveillance, the infrared LEDs provide a reliable black and white night vision option.
Stay Informed with Smart Detection
Enhance your peace of mind with smart detection capabilities. Our advanced system minimizes false alarms by intelligently identifying people, vehicles, and animals, delivering alerts only when it matters. Receive instant push notifications directly to your phone, keeping you informed and empowered, all without monthly fees.
Two-Way Audio & Dual Deterrents
Seamless communicate through your camera with the two-way talk feature, easily accessible through the Reolink App or Client. Say hello to your visitors or warn away intruders anytime, from anywhere. Enhanced with spotlight and siren deterrents, your home security is significantly boosted.
Ample Storage Space for 24/7 Footage
Keep your space secure with non-stop recording powered by a built-in 2TB hard drive, capturing footage from all four cameras. Expand your storage up to 16TB for extended recording times, ensuring uninterrupted offline 24/7 protection.
Easy Live View
Easily monitor multiple cameras on one screen for a complete overview of your surroundings, no more switching between channels.
Smart Playback
Filter recordings by type (motion, person, vehicle, animal) to save time and easily locate specific events.
Rugged Durability for Any Environment
With an IP67 waterproof rating and IK10 vandal resistance, this device is built to withstand tough conditions. Perfect for both indoor and outdoor use, it ensures reliable performance in harsh weather and endures intentional damage.
Empower Your System with Flexible Expansion
Tailor your security to your unique needs with our versatile system. It boasts outstanding expandability, effortlessly integrating with a diverse selection of Reolink cameras. Whether you prefer high-resolution PoE cameras for stable connections or Wi-Fi options for flexible installation, we have you covered with a range of choices.
Hassle-Free Setup: Plug and Play PoE
Experience the convenience of plug-and-play installation with our PoE (Power over Ethernet) system. No need for separate power cables for each camera.
Step 1. Set up the NVR: Connect the NVR to a power source and then to your router.
Step 2. Set up the Cams: Use an Ethernet cable to connect each PoE camera directly to the NVR.
Step 3. Scan & Preview: Scan the NVR's QR code using the Reolink App and view your live camera feeds.
What's in the Box
- 4 x RLC-843A
- 1 x RLN8-410
- 1 x NVR Power Adapter
- 1 x HDMI Cable
- 1 x USB Mouse
- 1 x 1m Network Cable
- 4 x 18m Network Cable
Free Shipping
Generally Shipped Out in 2 Business Day
Warranty
We provide a 2-year limited warranty for new Products (IP Camera/NVR System/Accessories) purchased from Reolink and a 1-year warranty for Reolink Certified Refurbished Products.
If you encounter any issues with Reolink products, please feel free to contact us and we will help process the warranty accordingly.
30-Day Return Policy
You may return the unwanted product to Reolink for a full refund or replacement within 30 days of the delivery date. You are responsible for the shipping fees. Beyond the end of those 30 days, refunds and exchanges for unwanted products are not available.
NVR Specifications
- IP Video Input: PoE IP Camera x 8
- Video Output: VGA, HDMI
- Synchronous Playback: Up to 4 channels
- SATA: 1 x SATA interface (1 x 2TB HDD included)
- External HDD: 1 eSATA Interface for HDD
- Capacity: Up to 16TB (max. 8TB capacity for each HDD)
- USB Interface: 2 x USB 2.0
- Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN; 8, RJ-45 10/100 Mbps self-adaptive PoE
- Ethernet interface for IP camera
- Supported Standard: IEEE 802.3af/at
- Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browsers Supported: Edge, Firefox, Chrome, Safari
- OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
- Max. User Access: 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Power Supply: DC 48V~53V
- Dimensions: 260 x 41 x 230mm
- Weight: 1.4kg
Camera Specifications
- Image Sensor: 1/2.8"CMOS sensor
- Resolution: 3840 x 2160 (8 megapixels) @25fps
- Lens: f=2.7-13.5mm, Max: F1.6
- Video Compression: H.265
- Zoom: 5X optical zoom
- Field of View: Horizontal: 100°- 31°; Vertical: 55°- 17°; Diagonal: 123°-39°
- Infrared Night Vision: Up to 30 meters (100ft); LED: 4pcs/2.8W/850nm(Auto-switching with IR-cut filter)
- Color Night Vision: With spotlights: 2pcs/3.2W/6500K
- Frame Rate: Mainstream: 2fps - 25fps (default: 25fps); Substream: 4fps - 15fps (default: 10fps)
- Audio: Two-way audio
- PoE: IEEE 802.3af, 48V, active
- Power Requirements: DC 12.0V 1A, <12W
- Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
- Recording Modes: Motion-triggered recording (default); scheduled recording; 24/7 recording
- Working Environment: Operating Temperature: -10°C to 55°C (14°F to 131°F); Operating Humidity: 10% to 90%
- Weatherproof: IP67
- Dimensions: Φ132.7x 98.3mm
- Weight: 751g
