Overview

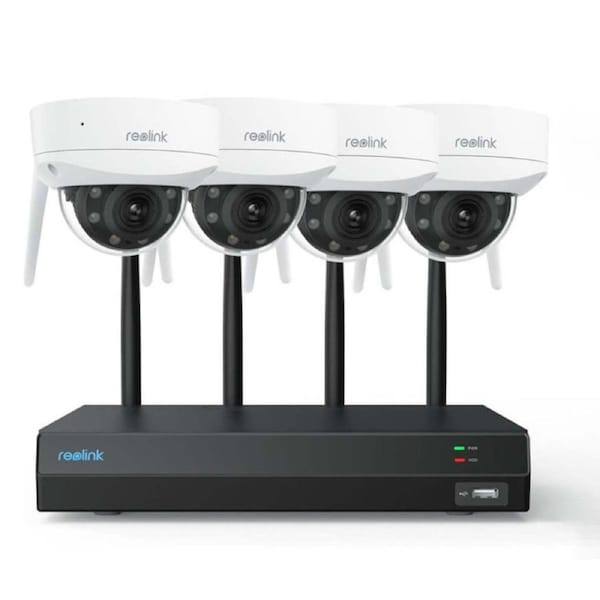

The 4K security system features Wi-Fi 6 tech, 5/2.4 GHz dual-band Wi-Fi, a 12-channel 2TB HDD NVR, four 4K cameras, up to 16TB storage capacity, color night vision, IP67 weatherproof, smart alerts, and two-way audio.
Features and Details
Create Your Private Security System
Empower homeowners and business owners with this all-encompassing security solution. Monitor various areas of properties seamlessly with advanced 4K cameras, and effortlessly manage them using the 12-channel NVR. Enjoy complete control with this security system at your fingertips.
Step into Wi-Fi 6 Era Now
The cutting-edge Wi-Fi 6 tech provides faster, more stable connections over long distances. It boasts superior anti-interference performance, thanks to BSS coloring technology, and optimizes WLAN channels efficiently with OFDMA and MU-MIMO technology. Now, enjoy seamless live viewing and playback experiences with reduced latency like never before.
Streaming Made Faster
Wi-Fi 6, equipped with 1024-QAM, amplifies transmission speeds by 25% compared to the Wi-Fi 5 standard. Immerse yourself in this high-speed, low-latency wireless network connection for optimal streaming experiences.
Extended Coverage
With 4 external high-gain antennas on the NVR and 2T2R MIMO antennas on cameras, the security system has superior signal coverage, spanning areas of up to 1000 square meters*. Enjoy expansive Wi-Fi network coverage throughout your property.
Get up Close to Distant Objects
With 5X optical zoom, it captures hard-to-see details even from a distance without compromising image quality, so nothing will escape your watchful eye.
4K Color Footage After Dark, No Glare
Equipped with powerful spotlights, the camera delivers lifelike full-color footage without glare even at night. Black and white night vision supported by IR LEDs is also available.
Smart Detection
By distinguishing people/vehicles/animals from other objects, the security system sends accurate alerts to you instantly, greatly reducing false alarms. No subscription is needed.
Double Warning
When the camera detects a suspicious event, it will also trigger powerful spotlights and a loud built-in siren to scare off intruders. You can also control them manually via the Reolink App/Client.
Two-Way Audio
With a built-in mic and speaker, you can talk to the people by the camera side in real-time. Whether greeting guests or deterring unwanted visitors, communication is effortless and effective.
*This feature is only compatible with the Reolink App/Client.
24/7 Recording, Local Storage
Enjoy uninterrupted recording even without the internet connection. With pre-installed 2TB HDD, the security system can keep recording for 10-11 days (1.5 weeks)*. When connected to the internet, Wi-Fi 6 tech with WPA3 ensures the safety of network connection, protecting your data and privacy.
*The data is obtained in the lab. Actual results may vary.
Easy Live View & Playback
View the live feed via Reolink app/Client from anywhere, anytime. By filtering all recordings by date/motion types, you can locate and playback the one you want quickly.
Dual-Band Wi-Fi Connectivity Setup Made Easier
Step 1. Start NVR: Power on NVR, then connect it to the monitor via HDMI/VGA, and to the router with the Ethernet cable.
Step 2. Start Camera: Power on the camera and connect it to the NVR with cables*; initialize the camera on the monitor and sync the NVR's Wi-Fi to it.
Step 3. Install Camera: Unplug the Ethernet cable on the camera and install it as you need. Then you can live view the feed on the monitor/Reolink App/Client.
Stay Tough in Any Harsh Weather
Featuring IP67 weatherproof rating, this camera is built to withstand the elements, ensuring reliable performance whether rain or shine.
Stands Strong in All Vandal-Prone Areas
With IK10 vandal-proof housing, this camera remains resilient and ensures unwavering protection in any challenging environment.
What's in the Box
- 4 x RLC-843WA
- 1 x RLN12W
- 4 x Power Extension Cable
- 1 x NVR Power Adapter
- 4 x 12V/1A Power Adapter
- 1 x HDMI Cable
- 1 x USB Mouse
- 1 x 1m Network Cable
Free Shipping
Generally Shipped Out in 2 Business Day
Warranty
We provide a 2-year limited warranty for new Products (IP Camera/NVR System/Accessories) purchased from Reolink and a 1-year warranty for Reolink Certified Refurbished Products.
If you encounter any issues with Reolink products, please feel free to contact us and we will help process the warranty accordingly.
30-Day Return Policy
You may return the unwanted product to Reolink for a full refund or replacement within 30 days of the delivery date. You are responsible for the shipping fees. Beyond the end of those 30 days, refunds and exchanges for unwanted products are not available.
NVR Specifications
- IP Video Input: Up to 12 IP cameras
- Audio Input: Cameras with built-in mic
- Video Output: VGA, HDMI
- Display Resolution: HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Audio Output: 1-channel, RCA
- Video Compression: H.265/H.264
- Synchronous Playback: Up to 4 channels
- SATA: 1 x SATA interface (1 x 2TB HDD included)
- Capacity: Up to 16TB
- USB Interface: 2 x USB 2.0
- Network Interface: 4 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras) 1 x RJ-45, 10/100 Mbps self-adaptive (for LAN/WAN)
- Network Protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP,SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported: Edge, Firefox, Chrome, Safari
- OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
- Max. User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (10 sub & 2 main streams)
- Power Supply: DC 12V/2A
- Power Consumption: <10W (with 2TB HDD)
- Working Environment: Temperature: -10°C-+45°C (14°F-113°F); Humidity: 10%-90%
- Dimensions: 255mm(W) x 49.5mm(H) x 222.7mm(D)
- Weight: 1.4kg
Camera Specifications
- Image Sensor: 1/2.8"CMOS sensor
- Resolution: 3840 x 2160 (8 megapixels) @20fps
- Lens: f=2.7-13.5mm, Max: F1.6
- Video Compression: H.265
- Zoom: 5X optical zoom
- Field of View: Horizontal: 100°- 31° Vertical: 55°- 17° Diagonal: 123°-39°
- Infrared Night Vision: Up to 30 meters (100ft); LED: 4pcs/2.8W/850nm (Auto-switching with IR-cut filter)
- Color Night Vision: With spotlights: 2pcs/3.2W/6000K
- Frame Rate: Main stream: 2fps - 20fps (default: 15fps) Sub stream: 4fps - 15fps (default: 10fps)
- Code Rate: Main stream: 1024Kbps - 6144Kbps (default: 4096Kbps) Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
- Audio: Audio recording
- Power Requirements: DC 12.0V 1A, <12W
- Power Port: DC power port
- Ethernet Port: One 10M/100Mbps; RJ45
- Storage: Reolink NVR
- Audio In/Out: Built-in microphone
- Wireless Standard: IEEE 802.11 a/ac/b/g/n
- Operating Frequency: 2.4GHz/5GHz
- Wireless Security: WPA/WPA2
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 sub streams)
- Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
- Recording Modes: Motion-triggered recording (default); scheduled recording, 24/7 recording
- Weatherproof: IP67
- Dimensions: Φ132.7 x 98.3mm
- Weight: 754g
