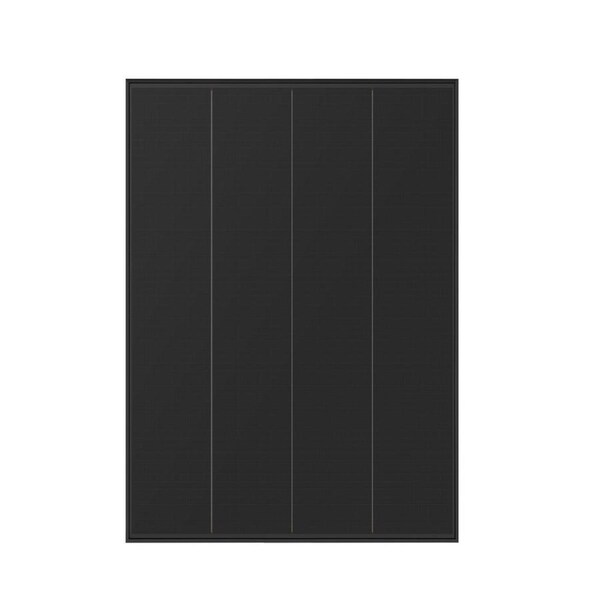

If you want solar panels that deliver higher energy yields, look no further than our shingled bifacial solar panels! They capture sunlight from both sides, providing 15% more energy compared to monofacial panels. Shingle technology also elevates efficiency, generating more power even in low-light conditions. Thanks to its ability to capture sunlight from both sides and the incorporation of PERC and bypass diodes, this 200W bifacial solar panel maximizes energy output on cloudy days and performs exceptionally on snowy days. The back side is always available, ensuring a continuous supply of solar power for your off-grid life. And that's not all - the shingled technology boosts output by 15~20% compared to traditional solar panels. Wired in parallel, these shingled solar panels significantly reduce losses and eliminating the hot spot effect caused by shade. On top of that, its IP-68 rating allows it to defy harsh conditions, while no visible circuitry gives it a sleek look.
FEATURES
- Bifacial Evolution: With a 200W primary side, and a 105W back side for ambient light, you can catch up to 15% more energy than traditional monofacial solar panels.
- More Energy Generation: Never miss out on energy with our PERC and bypass diodes. Our shingled bifacial solar panel excels in partial shade and snowy conditions.
- Shingled Cell Tech: Shingled tech uses a string of strips and ECA that ensures 15~20% more output compared with traditional monofacial solar panels
- Less Energy Loss: The shingled cells are wired in parallel that significantly reduces the losses and hotspot effect caused by shade compared with traditional panel.
- Unbeatable Rigidity: Aluminum frame and tempered glass ensure this shingled solar panel withstands wind loads of up to 2,400Pa and snow loads of up to 5,400Pa.
- All Weatherproof: Rain or shine, our shingled bifacial solar panel's IP68 waterproof rating keeps your electronics running, worry-free.
- Diverse Application: The ATEM POWER 200W shingled solar panel is perfect for off-grid applications including RVs, rooftops, cabins, yachts, sunrooms and more!
- More Aesthetic: Sleek and circuitry-free, our shingled bifacial solar panel adds a clean and stylish touch while delivering unmatched performance.
SPECIFICATIONS
Material:Shingled Cells
Front Glass:Tempered Glass
Frame:Aluminum
Color:Black
Wire Size:2.5mm2
Max Power at STC:200W(Front)/105W(Rear)
Max. System Voltage:500V
Open Circuit Voltage (VOC):24.94V
Short Circuit Current (ISC):9.54A(Front)/8.86A(Rear)
Max Power Voltage (VMP):20.98V
Max Power Current (IMP):9.54A
Power Tolerance:0~3%
Output Tolerance:0~3%
Module Efficiency:22%
Bifaciality Coefficients:52.5%
Operating Temperature:-40℃~80℃
Nominal Operating Cell Temerature (NOCT):25℃
IP Rating:IP-68
Wind Resistance:2,400Pa
Snow Load:5,400Pa
Certifications:CE/RoHS
Package Size:113(L) x 5.60(W) x 91(H)cm
Gross Weight:12kg
PACKAGE INCLUDES
1 x ATEM POWER 200W Shingled Bifacial Solar Panel
1 x User Manual
