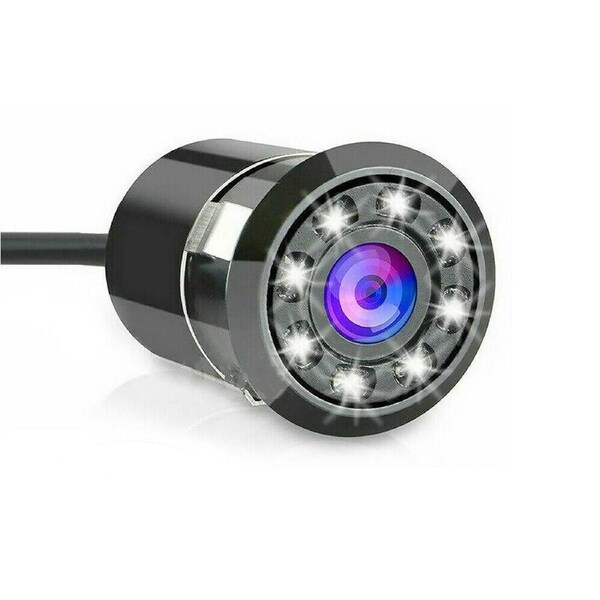

-Drill Hole Style Car HD Rear-View Camera, gives you a full sight of the back of your car when you are driving.
-8 LED Bright Night Vision ensures the car driving safety when backup or parking at night.
-Helps to avoid incidents, accidents abrasion and ensure your safety.
-Anti-fog glass, CMOS imaging sensor.
-Support NTSC video system.
-With the high sensitivity, you can get rid of the poor rear vision.
-Use high-quality Chip to make vivid and clear images.
-Compact design, easy to install and operate.
-IP68 waterproof design, shock-proof and anti-jamming functions.
-Applicable to variety of vehicles: car, truck, RV, etc.
-Can connect to any type of monitor with a composite yellow RCA jack.
-The Camera can be used as front, side, rear view camera by the white and green control loop wire.
-High definition and up to 170 degrees wide viewing angle.
-With 8 LED Lamp, will be very clear even at night.
-Compatible with DVD and car rear view monitor automobile navigation.
-170 degree wide angle, find the potential reverse in reality, such as kids in a blind eye, novice drivers reverse the dilemma, transfer from the car parking area.
-With CMOS core, the video and picture will be more clear.
-Waterproof, shockproof and dustproof.
-Good quality and longer service time.
Specifications:
-Image Sensors: PC1030 1 4 Inch Colour CMOS
-Sensor Area: 4.08 x 3.12mm
-Effective Pixels: 648 x 488 Pixels
-LED Quantity: 8 LED
-Lens Angle: 170 degrees
-Image pipeline feature: Auto exposure, AWB, AGC, Auto flicker detection and cancellation
-Video System: NTSC Automatic throw-over
-Minimum Illumination: 0.2Lux 0Lux with IR on
-Scanning System: 2:1 Interlace
-Resolution: 420TV lines
-Electronic Shutter: 1 60 NTSC, 1 50 PAL-1 1000s
-Gamma Coefficient: 0.45
-S N Ratio: Greater than 45.6db
Dynamic Range: Greater than 63.5db
-Waterproof Grade: IP 68
-Operation Temperature: -20 to 75 degrees C
-Storage Temperature: -40-85 degrees C
-Video Output: RCA connector, 1.0vp-p, 75Ohm
-Working Power: DC12V
-Current Consumption: 60mA
-Video cable length: Approx. 6m or 236.2 inch
-Power supply cable length: Approx 1.2m or 47.2 inch
-Drill Hole Diameter: Approx. 20.00mm or 0.73 inch
-Camera Dimension: Approx. 25 x 21 x 18.5mm or 0.98 x 0.83 x 0.73 inch
Package Inclusions:
-1 x 8 LED Round Back Up Camera
-1 x Video Cable
-1 x Power Cable
-1 x Hole Saw
Notes:
-Actual colors may vary due to computer monitors displaying colors differently.
-Due to the nature of the manufacturing process and manual measurement, product sizing may vary slightly.
