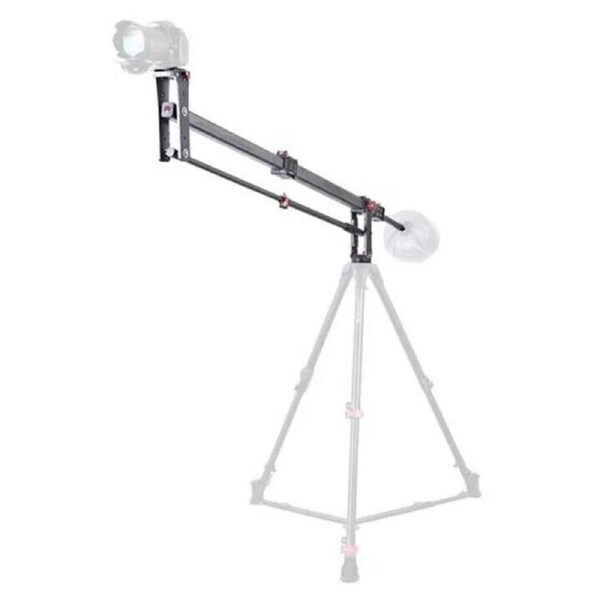

The M1-III Mini Cranefrom iFootage is a compact, portable jib arm featuring lightweight carbon-fiber construction, a telescoping square-arm tube, and multiple mounting options. Its square tube design helps to minimize potential shaking during operation. The M1-III has a maximum payload of 33 lb in standard mode and 22 lb in low-angle mode. The main jib arm and the counterweight arm each have one telescoping stage (two sections) with locking thumb-lever knobs. Standard barbell weights (available separately) may be used as counterweights.
Mount your DSLR (or other small camera) on either of two included quick release plates: the M1 or the Motion X2. The M1 plate has both a flat camera plate and a ball mount, enabling use of a fluid head (with a 60 or 75mm ball). The Motion X2 plate is used with micro cameras or when using wide- angle lenses. Both the arm base and the camera base incorporate 1/4 Inch-20 & 3/8 Inch-16 holes for mounting accessories.
The adjustable tilt-damping knob, the tilt lock, and the pan drag function give you added control over your crane shots. For programmable moves, the M1-III can be used with the iFootage Motion X2 or other motion control systems.
- 33 lb load capacity in standard mode, 22 lb in low mode
- Lightweight, carbon fiber, telescoping square-tubed main arm
- Compatible with 75mm ball or flat base-tripod heads
- Locking, damping-controlled tilt function, and pan drag control
- Camera can be mounted using the included quick-release plate or via a 60 or 75mm bowl head
- Quick-release plates have both 1/4 Inch-20 & 3/8 Inch-16 threaded holes
- Accessories can be mounted to the arm base and the camera base via 1/4 Inch-20 & 3/8 Inch-16 threaded holes
- Standard barbell weights can be used as counterweights
Features:
Built-in quality and strength:
Beautifully designed with a sleek black finish, the M1 III was created using precise CNC machine cutting technology for unprecedented support and durability.
The Tilt & Hold technology:
Use the Tilt function for unusual angle while moving the crane up and down and Hold function for to lock the camera position for steady focus.
Damping function:
The newly added damping function enables you to adjust the tightness for up and down tilt.
Flexible mounting options:
Mount a camera on it, in standard or low profile mode, or install your Motion X2 system directly on the crane to create a complete motorised system and shoot those interesting angles with ease.
New quick and secure locking system:
The brand new locking buckle design facilitates quick crane extension for those situations where you need to act fast to get that perfect shot.
Specifications:
- Material: Carbon Fiber Anodised Aluminium
- Weight: 3.8kg
- Tube Diameter: 43x40mm
- Extended Length: 217020mm
- Folded Length: 7020mm
- Max Radius: 1200mm
- Tilt Length: 2100mm
- Low Angle Load: 10kg
- Max Load: 15kg
In the Box:
Model: IF-MC3
- Main Section
- Fixing Screw
- 2.5 Inch Hex Keys
- Locking Knob
- Standard Quick Release Plate (For Motion X2)
- M1 Quick Release Plate
- Carrying Case
- Warranty Card
- Instruction Manual
- Product Certification
- Counterweight Clamp
Note: Low Profile Quick Release Adapter is not included.
Requires iFootage Wildbull tripod.
