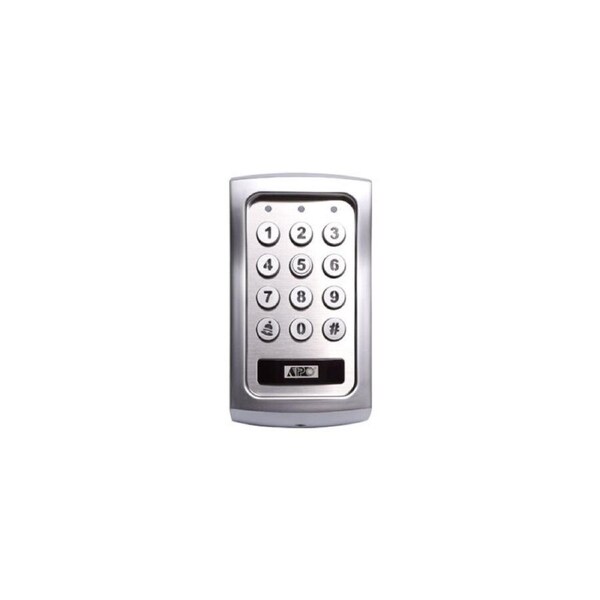

S5377A HID RFID Vandal Resistant Control Keypad with Card Reader

This weatherproof vandal resistant door keypad controller is designed for controlling a door strike in home or business security installations. It combines a digital keypad and proximity EM card reader in one unit. This unit also features a door bell ideal for guests and service members. There is two outputs for this unit. Output Relay 1: 2A Rating N.C & N.O. Contacts for Door Lock Actuation Control. Output Relay 2: 2A Rating N.C & N.O. Contacts for External Door Lock Actuation Control.

• Weatherproof design & construction (IP54)
• Vandal Resistent
• Compatible with optional controllers and reader keypads for system expansion
• Built-in logics for stand alone, split-decoded and multi-station operations
• Controls "Going In" with user codes/cards
• "Going Out" with feature programmable egress button
• Door Bell for guests/service persons /tradesmen
• Stainless steel faceplate
• Die-Cast Zinc Alloy Protection Bracket for Surface Mount

Specifications:

• Operating Voltage: 12-24V DC, Auto Adjusting
• Operating Current:
• 62mA (quiescent) to 130mA@12V DC
• 30mA (quiescent) to 61mA@24V DC
• Storage and Operation Temperature: -20°C to + 70°C
• Storage and Operation Humidity: 5-95% relative humidity non-condensing
• Working Environment & Ingress Protection: all weather, IP 65
• Number of Users: 1,000 (Codes and/or Cards) + 50 Duress Codes
• Proximity Card: Standard EM Card or Keyfob, 125KHz, Manchester 64bit
• Number of Visitor Codes: 50, programmable for one time or with time limit
• Timings for Code Entry and Card Reading:
• 10 seconds waiting for next digit entry
• 30 seconds waiting for code entry after card reading
• Timers: 1-99, 999 seconds (over 24 hours possible) Independent Programmable Timers for O/P 1&2
• Egress Button: Programmable for Instant, Delay with Warning
• Momentary or Holding contact for Exit Delay
• Input Sensing Terminals: a) Door Position, b) Egress, c) O/P 1 inhibit
• OutputControl Terminals: Transistor Open Collector 24V DC/100mA sink max for the following outputs a) Duress, b) Alarm Output, c) Inter-lock
• Output Contact Ratings:
• Output Relay 1 - N.C. & N.O. dry contacts, 2A/24V DC Max
• Output Relay 2 - N.C. & N.O. dry contacts, 2A/24V DC Max
• Tamper Switch - N.C. dry contact, 50mA/24V DC Max
• Dimensions: 144 x 78 x 29/32mm
• Weight: 380g net
• Housing: Die-cast Zinc Alloy Protection Bracket
• Faceplate Material: Stainless Steel

Package Contains:
1 x Keypad
2 x EM Cards
1 x Mounting Screws
1 x Centre Pin Torx Screw Wrench
1 x User Manual
