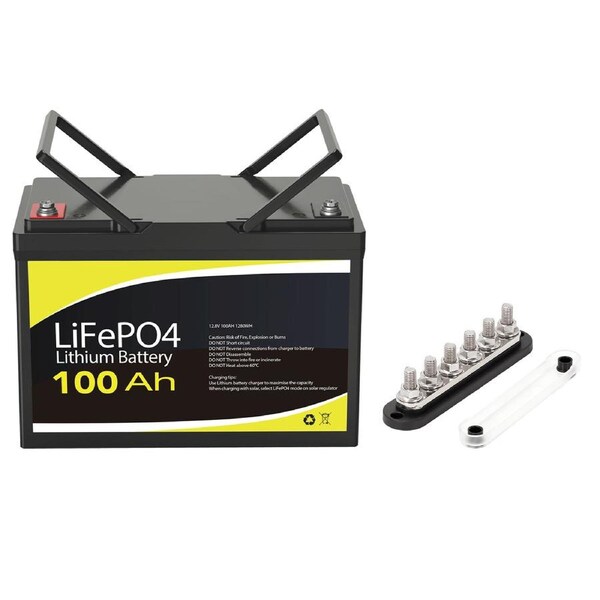

12V 100Ah Lithium Battery + 6 GANG 300A Bus Bar Black
- Brand: Power Bolt
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah
- Rated Energy: 1280Wh
- Approx Life Cycles: 3000
- Battery Manage System: 100A
- Standard Charging Current: 50A
- Max. Charging Current: 100A
- Standard Discharge Current: 100A
- Max. Continuous Discharge Current: 100A
- Max. Discharge Current 5 sec: 200A
- Charger: 14.4V 50A
- Charging Voltage: 14.2-14.6V
- Overcharge Protection: 14.6V
- Overcharge Recovery: 14.2V
- Overdischarge Protection: 10V
- Overdischarge Recovery: 10.6V
- Charge Temperature : 0°C to 45°C
- Discharge Temperature : -20°C to 60°C
- Storage Temperature: -10°C to 50°C
- Charge Method: CC/CV
- Charging Way: LiFePO4 Charger, Solar Panel
- Case Material: ABS Plastic
- Battery Type: LiFePO4 Lithium Battery
- Battery Model: Standard
- Battery Cells: Prismatic
- Certifications: IEC, UN38.3
- Protection Class: IP65
- Warranty in Years: 3
- Bolt Type: M8
- Bolt Material: Iron nickel-plated
- Cell Grouping: 4S1P
- Parallel Connection: Max 6
- Series Connection: Max 6
- Product Size: L306 x W171 x H210mm
- Package Size: L360 x W220 x H250mm
- Bolt Terminal Size: Hexagon x 12mm
- Bolt Terminal Perimeter: 25.12mm
- Net Weight: 9.5kg
- Gross Weight: 10.5kg
- 1x 100Ah Lithium Battery
- 2x Terminal Bolts M8*12
- 2x Insulating Covers
- 2x Screw Spring Washer
- 4x Screw Washers
- 1x User Manual
Product 2: Bus Bar M8 Power Distribution Terminal Block
- Continuous Rating Voltage Max: 300A 300V AC/48V DC
- Mounting Holes Accepts: Accepts #10 (M5) Screws
- Number of Terminal Studs: 6
- Number of Screw Terminals: 0
- Terminal Type: 3/8''(M10)Stud
- Base Material: UL94-VO Rated, Glass Reinforced Thermoplastics
- Bus Material: Nickel Plated
