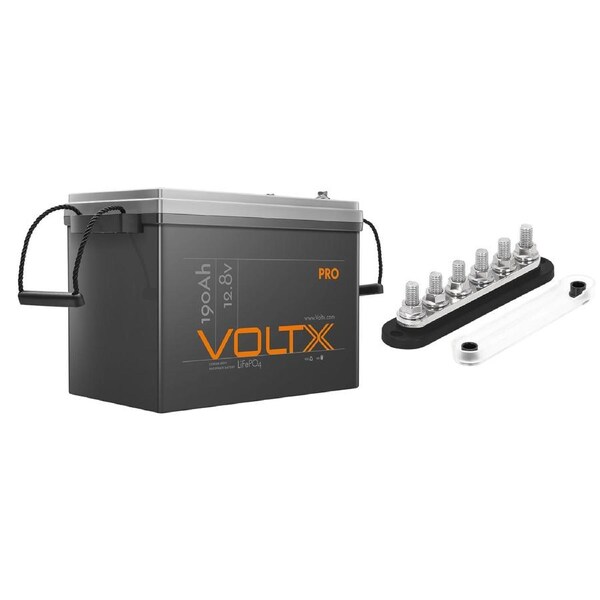

VoltX 12V 190Ah Lithium Battery + 6 GANG 300A BusBar Black

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 190Ah
• Rated Energy: 2432Wh
• Approx Life Cycles: 4000
• Battery Manage System: 150A
• Standard Charging Current: 50A
• Max. Charging Current: 150A
• Standard Discharge Current: 150A
• Max. Continuous Discharge Current: 150A
• Max. Discharge Current 5 sec: 300A

• Charger: 14.6V 50A
• Charging Voltage: 14.6V
• Absorption Voltage: 14.2-14.6V
• Float Voltage: 13.8V
• Overcharge Protection: 14.4V
• Overcharge Recovery: 14V
• Overdischarge Protection: 10.8V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: CALB Prismatic
• Cell Grouping: 4S1P
• Parallel Connection: Max 4
• Series Connection: No
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Pro 190Ah
• Certifications: IEC 62619
• Warranty in Years: 5

• Product Size: L345 x W190 x H245mm
• Package Size: L422 x W242 x H305mm
• Net Weight: 17.5kg
• Gross Weight: 18.5kg

• 1x VoltX Pro 190Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Continuous Rating Voltage Max: 300A 300V AC/48V DC
• Mounting Holes Accepts: Accepts #10 (M5) Screws
• Number of Terminal Studs: 6
• Number of Screw Terminals: 0
• Terminal Type: 3/8''(M10)Stud
• Base Material: UL94-VO Rated, Glass Reinforced Thermoplastics
• Bus Material: Nickel Plated
