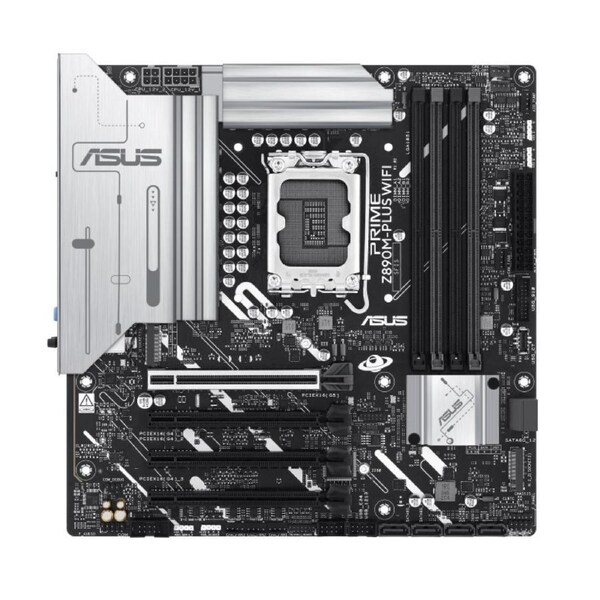

ASUS PRIME Z890M-PLUS WIFI-CSM LGA1851 mATX Motherboard 192GB, 4x DDR5, 1 x PCIe 5.0 x16 slots, 3 x M.2 slots, 6 x SATA 6Gb/s

ASUS PRIME Z890M-PLUS WIFI-CSM LGA1851 mATX Motherboard, DDR5 256GB, PCIe 5.0, 3xM.2, 2.5GbE, Wi-Fi 7, USB 20Gbps Type-C

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel(R) Core(TM) Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.


SPECIFICATIONS
Model
PRIME Z890M-PLUS WIFI-CSM

CPU
Supports Intel(R) Core(TM) Ultra Processors(Series 2), LGA1851*
Supports Intel(R) Turbo Boost Technology 2.0 and Intel(R) Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset
Intel(R) Z890 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel(R) Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)

Graphics
1 x DisplayPort**
1 x HDMI(TM) port***
1 x USB 20Gbps port (USB Type-C(R)) supports DisplayPort video output****
*Graphics specifications may vary between CPU types.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.

Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Special Features
ASUS 5X PROTECTION III
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack(TM) button
- BIOS FlashBack(TM) LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Operating System
Windows 11 (22H2 & later)

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
