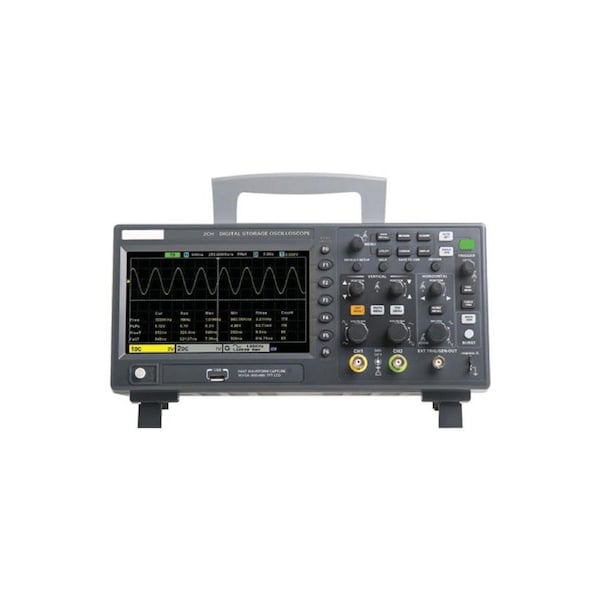

100MHz LCD Digital Storage Oscilloscope & Waveform Generator

Perfect for those in R&D, product development or service of complex electronic equipment. This compact bench top oscilloscope features 2 channels with real-time sampling modes of 1GSa/s (25GS/s equivalent sampling rate). The 7" 24-bit true colour TFT display offers a crisp display of both waveforms. The screen can be set up to simultaneously display the waveform plus indicate the measured wave voltage, peak to peak plus RMS, frequency, duty cycle etc. Using the USB lead and software supplied you are able to make realtime adjustments of the scope via the computer. Any stored data or settings can be either saved to a USB stick or downloaded direct to a PC. There is a comprehensive onboard help menu for ease of use. Being digital the overall size & weight is about 75% less than traditional CRT oscilloscopes.

Accessories include
2 x 10:1 probes - 1m length
1 x BNC-BNC lead
1 x USB cable
1 x Power lead

Features

• 2 Channel Digital Oscilloscope + Arbitrary/Function Waveform Generator + Synchronising Signal + External Trigger
• Easy to use button layout
• Large and clear 7" true colour 24-bit display
• Oscilloscope: 1GSa/s Sample Rate, 100MHz Bandwidth
• Huge selection of auto measurement functions
• Powerful trigger functions: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
• Arbitrary/Function Waveform Generator: 25MHz, 12 bits resolution, 200MHz DDS, Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC
• Integrated USB host, support USB disk storage, USB interface system update
