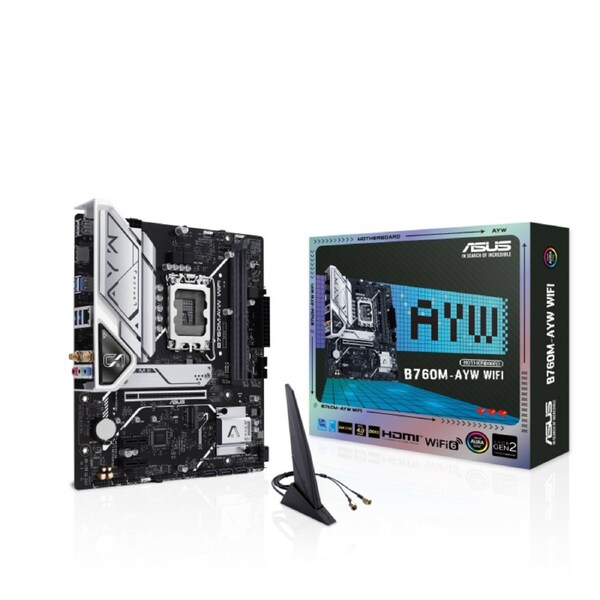

[B760M-AYW WIFI] Asus Motherboard, for Intel CPU, DDR5, LGA1700, Micro-ATX MB

ASUS B760M-AYW WIFI, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, WiFi 6, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

• Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1700 Socket:Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity:PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet , WiFi 6 and front USB 3.2 Gen 1 support
• Comprehensive Cooling:VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares

• Model :B760M-AYW WIFI
• News & Updates :2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of
  Intel Core 13th and 14th Gen desktop processors is now available. Please visit
  support site for the latest BIOS updates.
• CPU :Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer toAsus official sitefor CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset :Intel® B760 Chipset
• Memory :2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/700
  0(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Supported memory types, data rate (speed), and number of DRAM modules vary dep
  ending on the CPU and memory configuration, for more information please refer to
  CPU/Memory Support list under the Support tab of product information site or visithttps:// Asus official site/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics :1 x HDMITM port**
  * Graphics specifications may vary between CPU types. Please refer towww.intel.comfor any updates.
  ** Supports 4K@60Hz as specified in HDMITM 2.1.
• Expansion Slots :Intel® Core™ Processors (14th & 13th & 12th Gen)
  1 x PCIe 4.0 x16 slot
  Intel® B760 Chipset
  2 x PCIe 4.0 x1 slots
  Note: To ensure compatibility of the device installed, please refer tohttps:
  // Asus official site/support/for the list of supported peripherals.
• Storage :Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Processors (14th & 13th & 12th Gen)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet :1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 6
  Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth® v5.3*
  *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB :Rear USB (Total 6 ports)
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A?
  Front USB (Total 4 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports :4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x HDMITM port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
• Internal I/O Connectors :Fan and Cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
• Special Features :ASUS 5X PROTECTION III
  - DIGI+ VRM
  - LANGuard
  - Overvoltage Protection
  - SafeSlot Core +
  - Stainless-Steel Back I/O
  ASUS Q-Design
  - M.2 Q-Latch
  - Q-DIMM
  - Q-LED Core
  - Q-Slot
  ASUS EZ DIY
  - ProCool
  ASUS Thermal Solution
  - M.2 heatsink
  - VRM heatsink design
  Aura Sync
  - Addressable Gen 2 headers
• Software Features :ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  - Fan Xpert 2+
  - Power Saving
  - Two-Way AI Noise Cancellation
  AI Suite 3
  - DIGI+ VRM
  - PC Cleaner
  ASUS CPU-Z
  MyASUS
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• BIOS :128 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 Rubber Package
  1 x Screw package for M.2 SSD
  Documentation
  1 x User guide
• Operating System :Windows® 11, Windows® 10 64-bit
• Form Factor :mATX Form Factor
  9.6 inch x 8.3 inch (24.4cm x 21.1cm)
