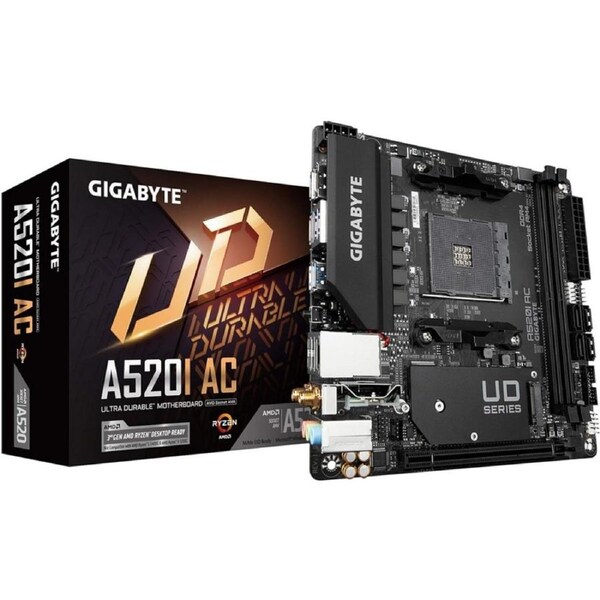

Gigabyte A520I AC Motherboard, for AMD CPU, DDR4, AM4, Mini-ITX MB

Gigabyte AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard 802.11ac WIFI, Realtek GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
• Direct 6 Phases Digital VRM Solution with 55A DrMOS
• Ultra-FastNVMe PCIe 3.0 x4 M.2
• Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
• Realtek GbE LAN with Bandwidth Management
• DisplayPort, Dual HDMI for for Multiple Display
• RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
• Smart Fan 5 Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Anti-Sulfur Resistors Design

• CPU :
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  (Please refer "CPU Support List" for more information.)
• Chipset :
  1. AMD A520
• Memory :
  1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
     * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
• Onboard Graphics :Integrated Graphics Processor with AMD Radeon™ Graphics support:
  1. 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
     * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  2. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  Support for up to 3 displays at the same time
  Maximum shared memory of 16 GB
• Audio :
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN :
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
• Wireless Communication module :Intel® Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel® Wi-Fi AC 9260 (For PCB rev. 1.1)/ Realtek® Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
  1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 4.2
  3. Support for 11ac wireless standard
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots :Integrated in the CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
• Storage Interface :Integrated in the CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
  Chipset:
  1. 4 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, and RAID 10
• USB :Integrated in the CPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors :
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
• Back Panel Connectors :
  1. 1 x DisplayPort
  2. 2 x HDMI ports
  3. 4 x USB 3.2 Gen 1 ports
  4. 2 x USB 2.0/1.1 ports
  5. 1 x Q-Flash Plus button
  6. 1 x RJ-45 ports
  7. 2 x SMA antenna connectors (1T1R)
  8. 3 x audio jacks
• I/O Controller :
  1. iTE® I/O Controller Chip
• H/W Monitoring :
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS :
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features :
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
• Bundled Software :
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
• Operating System :
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor :
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
• Remark :
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
