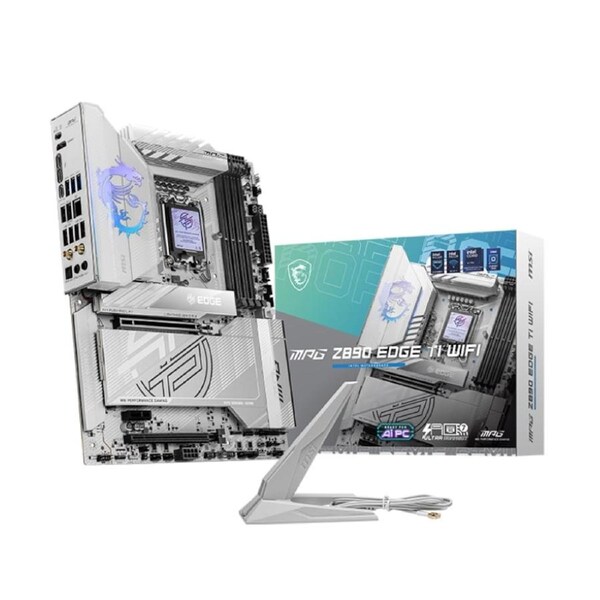

[MPG Z890 EDGE TI WIFI] MSI Motherboard, for Intel CPU, DDR5, LGA1851, ATX MB

MSI MPG Z890 EDGE TI WIFI Gaming Motherboards?Best Motherboard for AI PC?MSI

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, up to 9200+ MT/s (OC)
• Ultra Performance: 16+1+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
• Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Chipset :INTEL Z890
• CPU :Supports Intel® Core™ Ultra Processors (Series 2)
  LGA 1851
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  Max. overclocking frequency:
  1DPC 1R Max speed up to 9200+ MT/s
  1DPC 2R Max speed up to 7200+ MT/s
  2DPC 1R Max speed up to 4800+ MT/s
  2DPC 2R Max speed up to 4800+ MT/s
  Supports Intel POR Speed and JEDEC Speed
  Supports Memory Overclocking and Intel XMP 3.0
  Supports Dual-Controller Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM
  The DIMM slots on this motherboard have single-sided latches.
  Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit https://MSI Official Site/support/.
• Onboard Graphics :1x HDMI™
  Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
  2x Type-C DisplayPort
  ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :2x PCI-E x16 slot
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
• Audio :Realtek® ALC1220P Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output
• Storage :5x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
  4x SATA 6G
  *Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID :Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
  Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
• Onboard Thunderbolt :2x Thunderbolt4 ports (Rear)
  Supports up to 40Gbps transfer rate with Thunderbolt devices
  Supports up to 20Gbps transfer rate with USB4 devices
  Supports up to 10Gbps transfer rate with USB 3.2 devices
  Supports up to 5V/3A,15W power charging
  Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  Supports up to 8K display
• USB :1x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  4x USB 5Gbps Type A (Rear)
  2x USB 5Gbps Type A (Front)
  4x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Rear)
  1x USB 20Gbps Type C (Front)
  *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
• LAN :1x Intel® Killer™ E5000B 5G LAN
• Internal IO :1x Thunderbolt5 card connector(JTBT5, support RTD3)
  1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x Power Connector(PCIE_PWR 8pin)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  6x System Fan
  1x EZ Conn-header (JAF_2)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Thermal Sensor connectors(T_SEN)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 20Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Intel® Killer™ BE1750x Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth® 5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• LED FEATURE :4x EZ Debug LED
  1x EZ Digit Debug LED

• BACK PANEL PORTS :
  1. USB 5Gbps Type-A
  2. 5G LAN
  3. USB 10Gbps Type-A
  4. Wi-Fi / Bluetooth
  5. Audio Connectors
  6. Clear CMOS Button
  7. Flash BIOS Button
  8. HDMI™
  9. Thunderbolt 4
  10. USB 10Gbps Type-C
  11. USB 2.0
  12. Optical S/PDIF Out
• OPERATING SYSTEM :Support for Windows® 11 64-bit
• PCB Info :ATX
  243.84mmx304.8mm
