MSI B450M-A PRO MAX II Motherboard, for AMD CPU, DDR4, AM4, Micro-ATX MB

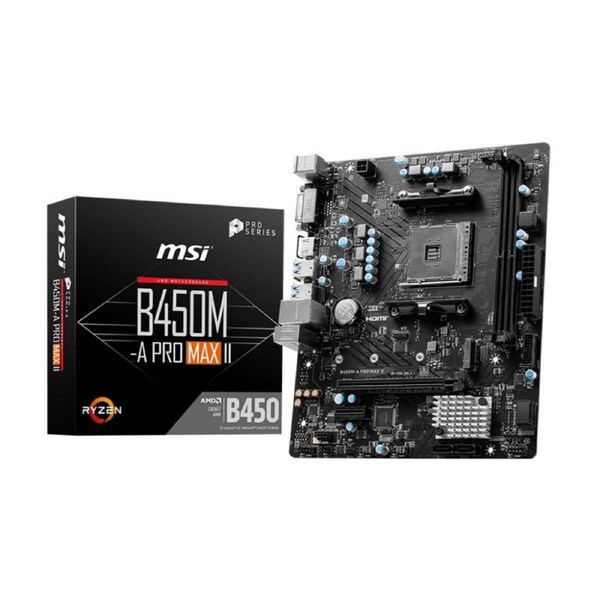

MSI B450M-A PRO MAX II Motherboard

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
• Supports DDR4 Memory, up to 4133(OC) MHz
• Turbo M.2:Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• Audio Boost: Reward your ears with studio grade sound quality.
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

• Chipset :AMD B450
• CPU :Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
  Socket AM4
• Memory :2x DDR4, Maximum Memory Capacity 64GB
  Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
  Supports Dual-Channel mode
  Supports non-ECC, UDIMM memory
  Supports ECC UDIMM memory (non-ECC mode)
  Supports un-buffered memory
• Onboard Graphics :1x HDMI™
  Support HDMITM 2.0b with HDR port, maximum resolution of 4K 60Hz*
  1x DVI
  Support DVI-D, maximum resolution of 1920x1200 60Hz
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :1x PCI-E x16 slot
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
• Audio :Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
• Storage :1x M.2
  M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
  4x SATA 6G
• RAID :Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• USB :2x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  4x USB 5Gbps Type A (Rear)
  2x USB 5Gbps Type A (Front)
• LAN :Realtek® 8125 2.5Gbps LAN controller
• Internal IO :1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  1x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
• BACK PANEL PORTS :
  1. Keyboard/Mouse
  2. DVI-D
  3. HDMI™
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. 2.5G LAN
  6. Audio connectors
  7. USB 2.0
• OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Info :mATX
  200mmx236mm
