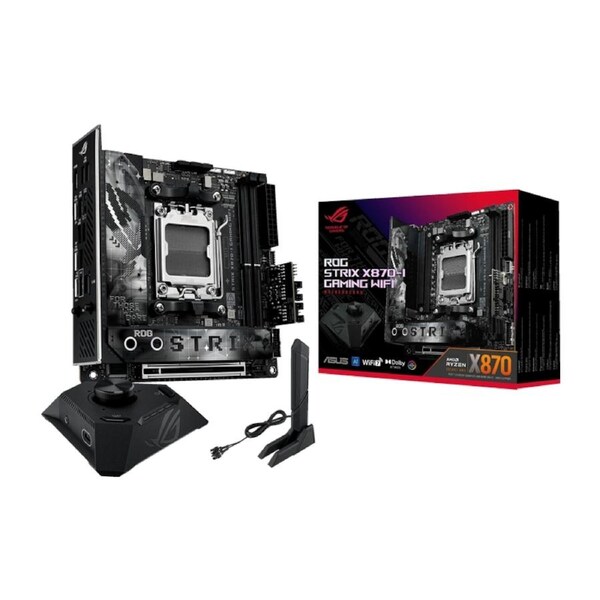

[ROG STRIX X870-I GAMING WIFI] Asus Mini-ITX Motherboard, for AMD CPU, DDR5, AM5

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

• AI OVERCLOCKING Effortless performance boost Learn more > AI Cooling II
• One-click fan tuning Learn more > AI Networking II
• Dual USB4 Type-C® ports Learn more > GEN 5 SUPPORT
• x1 Onboard M.2 Slot Learn more > DDR5
• Max. 96GB, AEMP Learn more > ROG STRIX HIVE II

• Model :ROG STRIX X870-I GAMING WIFI
• CPU :AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  * Refer to Asus official site/support/download-center/ for CPU support list.
• Chipset :AMD X870
• Memory :2 x DIMM slots, max. 96GB, DDR5
  Supports up to
  8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
  8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
  8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  ECC and Non-ECC Un-buffered DIMM*"
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
  configuration, for more information please refer to CPU/Memory Support list unde
  r the Support tab of product information site or visit Asus official site/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics :1 x HDMI™ port**
  2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
  * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
  **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots :AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot

  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*
  * Specifications vary by CPU types.
  - To ensure compatibility of the device installed, please refer to https:// Asus official site/support/ for the list of supported peripherals.
• Storage :Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*

  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)

  AMD Ryzen™ 8000 Series Desktop Processors*
  M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
  AMD X870 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  2 x SATA 6Gb/s ports***
  * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
  *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
• Ethernet :1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
  Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
• USB :Rear USB (Total 10 ports)
  2 x USB4® (40Gbps) port(s)(2 x USB Type-C®)
  5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
  3 x USB 2.0 port(s) (3 x Type-A)
  Front USB (Total 3 ports)
  1 x USB 10Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  * USB Type-C® power delivery output: max. 5V/3A
  ROG STRIX HIVE II(Total 2 ports)
  2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
  ROG FPS Card (Total 3 ports)
  2 x USB 2.0 headers additional 3 USB 2.0 ports
• Audio :ROG Strix Hive II Audio Features
  - ROG Hyper-Grounding Technology
  - ESS® SABRE9260Q DAC
  - Silver-plated audio jacks
  - Dedicated audio PCB layers
• Back Panel I/O Ports :2 x USB4® (40Gbps)(2 x USB Type-C®)
  5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)
  3 x USB 2.0 port(s) (2 x Type-A)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
• Internal I/O Connectors :Fan and Cooling Related
  1 x 4-pin CPU Fan header(s)
  1 x 4-pin AIO Pump header(s)
  1 x 4-pin Chassis Fan header(s)
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage Related
  2 x M.2 slots (Key M)
  USB
  1 x USB 10Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header support(s) 2
  additional USB 5Gbps ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x 2-pin Power Button header
  1 x Thermal Sensor header
  2 x USB Type-C® connectors to install ROG FPS card
  ROG FPS card
  2 x SATA 6Gb/s ports
  1 x CPU Over Voltage jumper
  1 x Front Panel header
  1 x Alteration PCIe Mode switch
  2 x USB 2.0 headers support 3
  additional USB 2.0 ports
• Special Features :ASUS Q-Design
  - M.2 Q-Latch
  - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
  - Q-Antenna
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink
  - Aluminum backplate
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - Clear CMOS button
  - ProCool II
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM
  Aura Sync
  - Addressable Gen 2 header(s)
  ROG STRIX HIVE II
  1 x USB Type-C® connects to motherboard
  2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
  1 x Headphone jack with mic in
  1 x Power button
  1 x FlexKey button
  1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Software Features :ROG Exclusive Software
  - ROG CPU-Z
  - Dolby Atmos
  ASUS Exclusive Software
  Armoury Crate
  - AIDA64 (60 days free trial)
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - GameFirst
  - HWiNFO
  - Power Saving
  ASUS Driver Hub
  ASUS GlideX
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI
  BIOS EZ Mode
  - ASUS
  MyHotkey
  FlexKey
  Dynamic OC Switcher
• Remote Management Features
"
• BIOS :256 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  1 x Panel cable
  1 x ROG USB2.0 splitter cable
  2 x SATA 6Gb/s cables
  ROG FPS Card
  1 x ROG FPS Card
  ROG STRIX HIVE II
  1 x ROG STRIX HIVE II
  1 x USB Type-C® power connection cable
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x Cable ties package
  1 x M.2 Q-Latch package(s)
  1 x ROG key chain
  1 x ROG Strix stickers
  1 x M.2 rubber package(s)
  Documentation
  1 x Quick start guide
• Operating System :Windows® 11 64-bit
• Form Factor :Mini-ITX Form Factor
  6.7 inch x 6.7 inch (17 cm x 17 cm)
