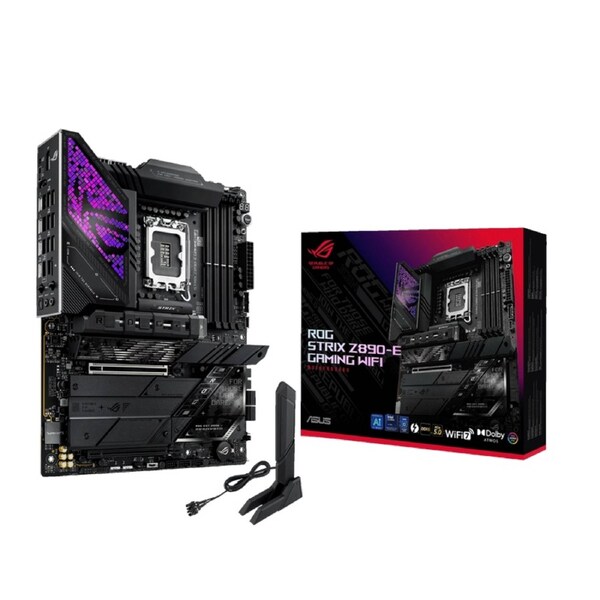

Asus ROG STRIX Z890-E GAMING WIFI Motherboard, for Intel CPU, DDR5, LGA1851, ATX

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 1851 Socket: Ready for Intel Core Ultra processors (Series 2)
• Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
• Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
• Robust Power Solution: 18(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an C-shaped heatpipe
• Latest M.2 Support: Three PCIe 5.0 M.2 slots and four PCIe 4.0 M.2 slots, all with substantial cooling solutions

• Model :ROG STRIX Z890-E GAMING WIFI
• News & Updates :2024/10/24: A new BIOS has been released addressing various bugs, including no d
  isplay from the graphics card when installing Windows 11 24H2. It is recommended
  to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.
• CPU :Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to Asus official site/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset :Intel® Z890 Chipset
• Memory :4 x DIMM slots, max. 192GB, DDR5
  Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP) memory module
  Supports DIMM Flex
  NitroPath DRAM Technology
  DIMM Fit
  ASUS Enhanced Memory Profile III (AEMP III)
  * Supported memory types, data rate (speed), and number of DRAM modules vary dep
  ending on the CPU and memory configuration, for more information please refer to
  CPU/Memory Support list under the Support tab of product information site or visit Asus official site/support/download-center/.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics :1 x DisplayPort**
  1 x HDMI® port***
  2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  *** Supports max. 8K@60Hz as specified in HDMI 2.1.
  **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x
  2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
  ****** VGA resolution support depends on processors' or graphic cards' resolution.
  *******While installing the operating system, please ensure that your monitor is
  connected to the HDMI port on the back I/O panel or to a discrete graphics card.
• Expansion Slots :Intel® Core™ Ultra Processors(Series 2)*
  1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
  Intel® Z890 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  * Please check PCIe bifurcation table in support site (https:// Asus official site/support/FAQ/1037507/).
  - To ensure compatibility of the device installed, please refer to https:// Asus official site/support/ for the list of supported peripherals.
• Multi-GPU Support
"
• Storage :Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors(Series 2)*
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  Intel® Z890 Chipset
  M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
  ** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
• Ethernet :1 x Realtek 5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  For Windows 10, only Wi-Fi 6 is supported.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB :Rear USB (Total 14 ports)
  2 x Thunderbolt™ 4 (2 x USB Type-C®)
  9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
  3 x USB 5Gbps ports (3 x Type-A)
  Front USB (Total 11 ports)
  1 x USB 20Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
  * USB Type-C® power delivery output: 5V/3A
  ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
• Audio :ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
  - Impedance sense for front and rear headphone outputs
  - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  - Supports up to 32-Bit/384 kHz playback
  Audio Features
  - Audio Shielding
  - Savitech SV3H712 AMP
  - Gold-plated audio jacks
  - Rear optical S/PDIF out port
  - Premium audio capacitors
  - Audio cover
  * The LINE OUT port on the rear panel does not support spatial audio. If you wis
  h to use spatial audio, make sure to connect your audio output device to the aud
  io jack on the front panel of your chassis or use a USB interface audio device.
• Back Panel I/O Ports :2 x Thunderbolt™ 4 (2 x USB Type-C®)
  9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
  3 x USB 5Gbps ports (3 x Type-A)
  1 x DisplayPort
  1 x HDMI® port
  1 x Wi-Fi Module
  1 x Realtek 5Gb Ethernet
  2 x Gold-plated audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
• Internal I/O Connectors :Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage related
  7 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 20Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen2 headers
  1 x Chassis Intrusion header
  1 x CPU Over Voltage jumper
  1 x FlexKey button
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ (USB4®) header
• Special Features :Extreme Engine Digi+
  - 5K Black Metallic Capacitors
  ASUS Q-Design
  - M.2 Q-Latch
  - M.2 Q-Release
  - M.2 Q-Slide
  - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
  - Q-Antenna
  - Q-Code
  - Q-Dashboard
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsinks
  - M.2 heatsink backplate
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - Clear CMOS button
  - ProCool II
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM
  Aura Sync
  - Addressable Gen2 headers
• Software Features :ROG Exclusive Software
  - ROG CPU-Z
  - Dolby Atmos
  ASUS Exclusive Software
  Armoury Crate
  - AIDA64 Extreme (60 days free trial)
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - GameFirst
  - HWiNFO
  - Power Saving
  ASUS Driver Hub
  ASUS GlideX
  TurboV Core
  USB Wattage Watcher
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
  NPU Boost
  FlexKey
• BIOS :256 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  2 x SATA 6Gb/s cables
  Additional Cooling Kit
  1 x Thermal pad for M.2 22110
  Miscellaneous
  1 x ASUS Wi-Fi Q-Antenna
  1 x Cable ties pack
  1 x M.2 Q-Latch package
  2 x M.2 Q-Slides
  1 x ROG key chain
  1 x ROG Strix stickers
  7 x M.2 Rubbers
  Documentation
  1 x Quick start guide
• Operating System :Windows® 11 (22H2 & later)
• Form Factor :ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
