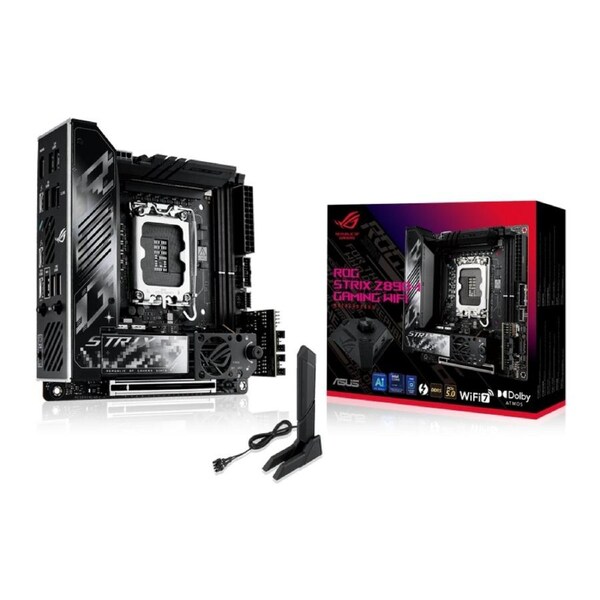

Asus ROG STRIX Z890-I GAMING WIFI Mini-ITX Motherboard, for Intel, DDR5, LGA1851

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

• AI OVERCLOCKING Effortless performance boost Learn more > AI Cooling II
• One-click fan tuning Learn more > AI Networking II
• 10 + 1 + 2 + 1 power solution rated for up to 110A per stage Learn more > WIFI 7
• Two Onboard M.2 Slots Learn more > DDR5
• 9200+ MT/s, MAX. 96GB, DIMM FIT, AEMP III, DIMM FLEX Learn more > ROG STRIX HIVE II

• Model :ROG STRIX Z890-I GAMING WIFI
• News & Updates :2024/10/24: A new BIOS has been released addressing various bugs, including no d
  isplay from the graphics card when installing Windows 11 24H2. It is recommended
  to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.
  Please visit Asus website to check and download the latest updates.
• CPU :Support Intel® Core™ Ultra Processors
  (Series 2)*
  Supports Intel® Turbo Boost Technology 2.0
  and Intel® Turbo Boost Max Technology 3.0**
  * Refer to
  Asus official site/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0
  support depends on the CPU types.
• Chipset :Intel® Z890 Chipset
• Memory :2 x DIMM slots, max. 96GB, DDR5
  Support up to 9200+MT/s (OC), Non-ECC,
  Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile
  (XMP) memory module
  Supports DIMM Flex
  ASUS Enhanced Memory Profile III (AEMP III)
  * Supported memory types, data rate
  (speed), and number of DRAM modules vary depending on the CPU and memory
  configuration, for more information please refer to CPU/Memory Support list
  under the Support tab of product information site or visit Asus official site/support/download-center/.
  * Non-ECC, un-buffered DDR5 memory supports
  On-Die ECC function.
• Graphics :1 x HDMI™ port**
  2 x Intel® Thunderbolt™ 4 ports (USB
  Type-C®) support DisplayPort and Thunderbolt™ video outputs***
  * Graphics specifications may vary between
  CPU types. Please refer to www.intel.com for any updates.
  ** Supports 4K@60Hz as specified in HDMI
  2.1.
  *** In Thunderbolt™ 4 mode, supports up to
  8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or
  16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP
  alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
  **** VGA resolution support depends on
  processors' or graphic cards' resolution.
  ***** While installing the operating
  system, please ensure that your monitor is connected to the HDMI port on the
  back I/O panel or to a discrete graphics card.
• Expansion Slots :Intel® Core™ Ultra Processors(Series 2)*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  * Please check the PCIe bifurcation table
  on the support site (https:// Asus official site/support/FAQ/1037507/).
  - To ensure compatibility of the device
  installed, please refer to Asus official site/support/download-center/ for
  the list of supported peripherals.
• Storage :Total Supports 2 x M.2 slots and 2 x SATA
  6Gb/s ports*
  Intel® Core™ Ultra Processors(Series 2)**
  M.2_1 slot (Key M), type
  2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type
  2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
  2 x SATA 6Gb/s ports***
  * Intel® Rapid Storage Technology supports
  PCIe RAID 0/1, SATA RAID 0/1.
  ** M.2_2 slot shares bandwidth with
  PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run
  x8 only.
  *** Install ROG FPS Card to support 2 x
  SATA 6Gb/s ports.
• Ethernet :1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 320MHz bandwidth, up to
  5.8Gbps transfer rate.
  Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the
  operating system
  For
  Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
  Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  For
  Windows 10, only Wi-Fi 6 is supported.
  ** Wi-Fi 6GHz frequency band and bandwidth
  regulatory may vary between countries.
  *** The Bluetooth® version may vary, please
  refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB :Rear USB (Total 9 ports)
  2 x Thunderbolt™ 4 (2 x USB Type-C®)
  1 x USB 20Gbps port (1 x USB Type-C®)
  3 x USB 10Gbps ports (3 x Type-A)
  1 x USB 5Gbps port (1 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 3 ports)
  1 x USB 20Gbps connector (supports USB
  Type-C®)
  1 x USB 5Gbps header supports 2 additional
  USB 5Gbps ports
  ROG STRIX HIVE II (Total 2 ports)
  2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x
  Type-A)
  ROG FPS Card (Total 3 ports)
  2 x USB 2.0 headers support additional 3
  USB 2.0 ports
  * USB Type-C® power delivery output: max.
  5V/3A
• Audio :ROG Strix Hive II Audio Features
  - ROG Hyper-Grounding Technology
  - ESS® SABRE9260Q DAC
  - Silver-plated audio jacks
  - Dedicated audio PCB layers
  * All audio functions on ROG STRIX Z890-I
  GAMING WIFI are supported through the ROG STRIX HIVE II.
• Back Panel I/O Ports :2 x Thunderbolt™ 4 (2 x USB Type-C®)
  1 x USB 20Gbps port (1 x USB Type-C®)
  3 x USB 10Gbps ports (3 x Type-A)
  1 x USB 5Gbps port (1 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet port
  1 x BIOS FlashBack™ button
• Internal I/O Connectors :Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin AIO Pump header
  1 x 4-pin Chassis Fan header
  1 x Extra Flow Fan header
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage Related
  2 x M.2 slots (Key M)
  USB
  1 x USB 20Gbps connector (supports USB
  Type-C®)
  1 x USB 5Gbps header supports 2 additional
  USB 5Gbps ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x 2-pin Power Button header
  1 x Thermal Sensor header
  2 x USB Type-C® connectors to install ROG
  FPS card
  ROG FPS card
  2 x SATA 6Gb/s ports
  1 x CPU Over Voltage jumper
  1 x Clear CMOS header
  1 x Front Panel header
  1 x Alteration PCIe Mode switch
  2 x USB 2.0 headers support 3 additional
  USB 2.0 ports
• Special Features :Extreme Engine Digi+
  - 5K Black metallic capacitors
  ASUS Q-Design
  - M.2 Q-Release Duo
  - PCIe Slot Q-Release Slim (with PCIe
  SafeSlot)
  - Q-Antenna
  - Q-Dashboard
  - Q-DIMM
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink backplate
  - M.2 heatsink
  - VRM heatsink design
  - Fan bracket
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - CPU Socket lever protector
  - ProCool II
  - Pre-mounted I/O shield
  - SafeDIMM
  - Backplate
  Aura Sync
  - Addressable Gen 2 headers
  ROG STRIX HIVE II
  1 x USB Type-C® connects to motherboard
  2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x
  Type-A)
  1 x Headphone jack with mic in
  1 x FlexKey button
  1 x Power button
  1 x Volume control knob with mute button
  Q-LED (CPU [red], DRAM [yellow], VGA
  [white], Boot Device [yellow green])
• Software Features :ROG Exclusive Software
  - ROG CPU-Z
  - Dolby Atmos
  ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - GameFirst
  - Power Saving
  HWiNFO
  AIDA64 Extreme (60 days free trial)
  ASUS AI Advisor
  ASUS Driver Hub
  ASUS GlideX
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
  NPU Boost
• BIOS :256 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  1 x ROG USB2.0 splitter cable
  2 x SATA 6Gb/s cables
  1 x Panel Cable
  ROG FPS Card
  1 x ROG FPS Card
  ROG STRIX HIVE II
  1 x ROG STRIX HIVE II
  1 x USB Type-C® power connection cable
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x Cable ties package
  1 x ROG key chain
  1 x ROG Strix stickers
  Documentation
  1 x Quick start guide
• Operating System :Windows 11 (22H2 later)
• Form Factor :Mini-ITX Form Factor
  6.7 inch x 6.7 inch (17 cm x 17 cm)
