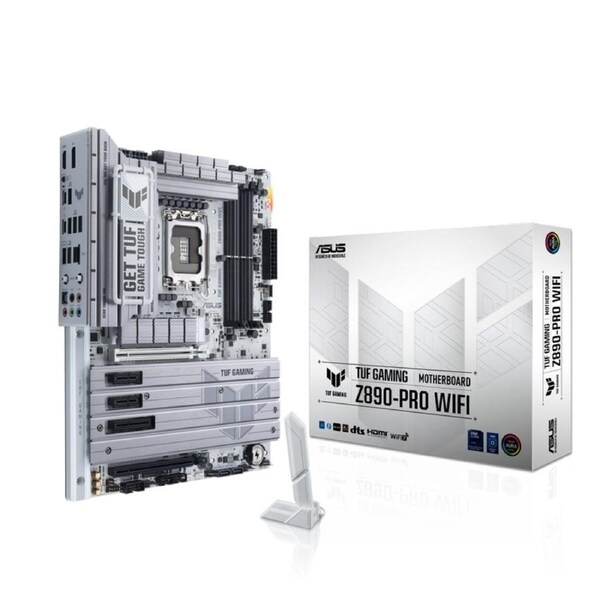

Asus TUF GAMING Z890-PRO WIFI Motherboard, for Intel CPU, DDR5, LGA1851, ATX MB

ASUS TUF GAMING Z890-PRO WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

• Premium power stages with enlarged VRM heatsinks
• AI Advisor, AI Overclocking, AI Cooling II & AI Networking II
• The BIOS feature overclocks the NPU with just one click
• Effortlessly apply to unleash performance
• Supports next-gen graphics cards and is robust for handling data-heavy tasks
• Two Thunderbolt™ 4 & front USB 20Gbps Type-C® with PD fast charge support
• Q-Release Slim, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, BIOS Flashback™ Button
• WiFi 7 with ASUS WiFi Q-Antenna
• Full RGB lighting control

• Model :TUF GAMING Z890-PRO WIFI
• News & Updates :2024/10/24: A new BIOS has been released addressing various bugs, including no d
  isplay from the graphics card when installing Windows 11 24H2. It is recommended
  to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.
  Please visit Asus website to check and download the latest updates.
• CPU :Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to Asus official site/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset :Intel® Z890 Chipset
• Memory :4 x DIMM slots, max. 192GB, DDR5
  Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile III(AEMPIII)
  * Supported memory types, data rate (speed), and number of DRAM modules vary dep
  ending on the CPU and memory configuration, for more information please refer to
  CPU/Memory Support list under the Support tab of product information site or visit Asus official site/support/download-center/.** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics :1 x DisplayPort**
  1 x HDMI™ port***
  2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2
  , maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
  ****** VGA resolution support depends on processors' or graphic cards' resolution.
  ******* While installing the operating system, please ensure that your monitor i
  s connected to the HDMI port on the back I/O panel or to a discrete graphics card.
• Expansion Slots :Intel® Core™ Ultra Processors(Series 2)*
  1 x PCIe 5.0 x16 slot
  Intel® Z890 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 4.0 x4 slot
  2 x PCIe 4.0 x1 slots
  * Please check the PCIe bifurcation table on the support site (https:// Asus official site/support/FAQ/1037507/).
  - To ensure compatibility of the device installed, please refer to https:// Asus
  official site/support/download-center/ for the list of supported peripherals.
• Storage :Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors(Series 2)*
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  Intel® Z890 Chipset
  M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
• Ethernet :1 x Intel® 2.5Gb Ethernet
  TUF LANGuard
• Wireless & Bluetooth :Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB :Rear USB (Total 8 ports)
  2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
  6 x USB 10Gbps ports (6 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge )*
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  * USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
• Audio :Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
  - Impedance sense for front and rear headphone outputs
  - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  - Supports up to 32-Bit/192 kHz playback*
  Audio Features
  - Audio Shielding
  - Rear optical S/PDIF out port
  - Premium audio capacitors
  - Dedicated audio PCB layers
  - Audio cover
  - Unique de-pop circuit
  * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• Back Panel I/O Ports :2 x Thunderbolt™ 4 USB Type-C® ports
  6 x USB 10Gbps ports (6 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
• Internal I/O Connectors :Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 20Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ (USB4®) header
• Special Features :ASUS TUF PROTECTION
  - DIGI+ VRM (- Digital power design with DrMOS)
  - ESD Guards
  - TUF LANGuard
  - Overvoltage protection
  - SafeSlot
  - Stainless-steel back I/O
  ASUS Q-Design
  - M.2 Q-Latch
  - M.2 Q-Release
  - M.2 Q-Slide
  - Q-Release Slim (with PCIe SafeSlot)
  - Q-Antenna
  - Q-Dashboard
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink backplate
  - M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - CPU Socket lever protector
  - ProCool
  - Pre-mounted I/O shield
  - SafeDIMM
  Aura Sync
  - Addressable Gen 2 headers
  Front Panel USB 20Gbps with PD Fast Charge Support
  - Support: up to 30W fast charging and USB Wattage Watcher
  - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
  - Compatible with PD3.0
• Software Features :ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - Power Saving
  ASUS DriverHub
  ASUS GlideX
  USB Wattage Watcher
  TurboV Core
  TUF GAMING CPU-Z
  DTS Audio Processing
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
  NPU Boost
• BIOS :256 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x M.2 Q-Slide package
  2 x M.2 rubber packages
  1 x Screw package for M.2 SSD
  1 x TUF GAMING sticker
  1 x TUF GAMING removable nameplate
  Documentation
  1 x Quick start guide
• Operating System :Windows 11 (22H2 & later)
• Form Factor :ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
