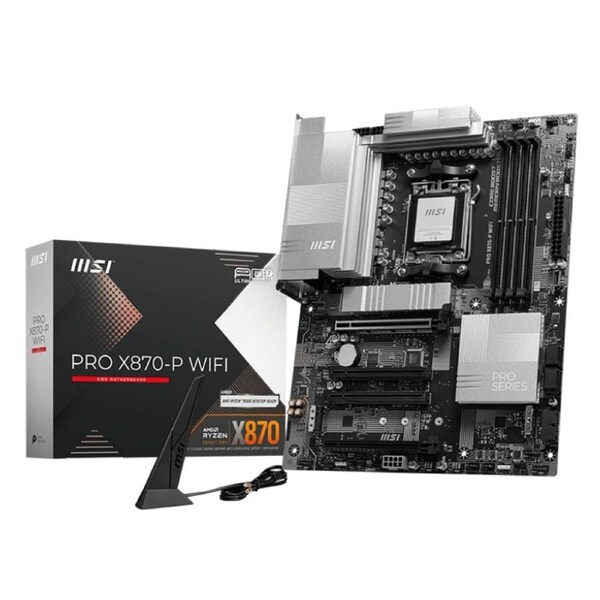

MSI PRO X870-P WIFI Motherboard, for AMD CPU, DDR5, AM5, ATX MB

MSI PRO X870-P WIFI PRO Series Motherboards?Best Motherboard for AI PC?MSI

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Chipset :AMD X870
• CPU :Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPOTM
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
  * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  • The DIMM slots on this motherboard have double-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit https://MSI Official Site/support/.
• Onboard Graphics :1x HDMI™
  Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  1x Type-C DisplayPort
  USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :4x PCI-E x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
  * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
• Audio :Realtek® ALC897
  7.1-Channel High Definition Audio
• Storage :3x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
  4x SATA 6G
  M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  *Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID :Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• USB :4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 5Gbps Type A (Rear)
  2x USB 5Gbps Type A (Front)
  2x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Front)
  1x USB 20Gbps Type C (Rear)
  1x USB 40Gbps Type C (Rear)
• LAN :Realtek® 8126VB 5G LAN
• Internal IO :1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x Power Connector(PCIE_PWR 8pin)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  6x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth® 5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :
  1. Clear CMOS Button
  2. USB 5Gbps Type-A
  3. USB 2.0
  4. 5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. Flash BIOS Button
  8. HDMI™
  9. USB 40Gbps Type-C
  10. USB 10Gbps Type-A
  11. USB 20Gbps Type-C
• OPERATING SYSTEM :Support for Windows® 11 64-bit
• PCB Info :ATX
  243.84mmx304.8mm
