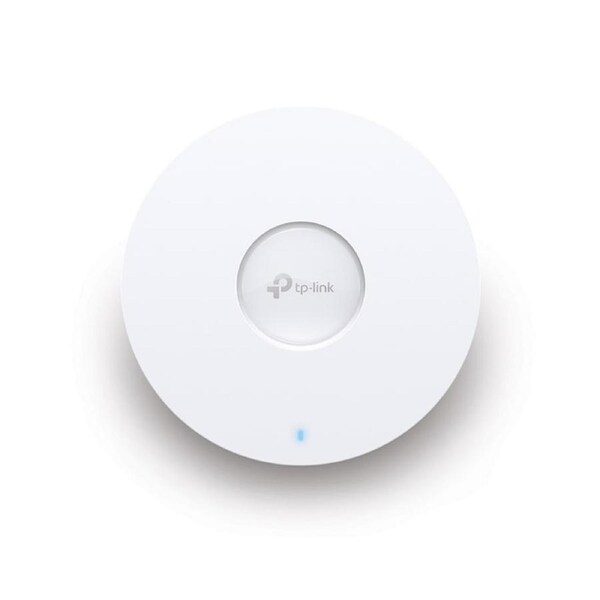

[EAP653 UR] AX3000 Ceiling Mount WiFi 6 Access Point

TP-Link EAP653 UR, AX3000 Ceiling Mount WiFi 6 Access Point

• Ultra-fast WiFi 6 speeds:2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
• Ultra-range wireless coverage bymore antennas with higher transmit power
• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
• Advanced Features: Omada Mesh, Seamless Roaming, etc§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
• Ultra-Slim Design: Φ6.3in × 1.3 in elegant design brings more agility
• Integrates with the Omada SDN platform for centralized management

HARDWARE FEATURES

• Interface :1× Gigabit PoE+ Port
• Button :Reset
• Power Supply :• 802.3at PoE
  • 12V DC / 1.5 A (Power Adapter IS NOT included)
  • 48V Passive PoE
• Power Consumption :• EU: 14.2 W
  • US: 15.5 W
• Dimensions ( W x D x H ) :6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
• Antenna Type :Internal Omni
  • 2.4 GHz: 2× 5 dBi
  • 5 GHz: 3× 5 dBi
• Mounting :• Ceiling /Wall Mounting (Kits included)
  • Junction Box Mounting

WIRELESS FEATURES

• Coverage :185 ? (2000 ft²)^***
• Concurrent Clients :250+^**
• Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
• Frequency :2.4 GHz and 5 GHz
• Signal Rate :• 5 GHz: Up to 2402 Mbps
  • 2.4 GHz: Up to 574 Mbps
• Wireless Functions :• 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
  • HE160 (160 MHz Bandwidth)
  • Seamless Roaming(802.11k/v/r)^§
  • Omada Mesh^§
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
• Wireless Security :• Captive Portal Authentication^§
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power :• CE:
  <20 dBm(2.4 GHz, EIRP)
  <23 dBm(5 GHz, Band1 & Band2, EIRP)
  <29 dBm(5 GHz, Band3, EIRP)
  • FCC:
  <26 dBm (2.4 GHz)
  <27 dBm (5 GHz)

MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Email Alerts :Yes
• LED ON/OFF Control :Yes
• Management MAC Access Control :Yes
• SNMP :v1, v2c, v3
• System Logging Local/Remote Syslog :Local/Remote Syslog
• SSH :Yes
• Web-based Management :HTTP/HTTPS
• L3 Management :Yes
• Multi-site Management :Yes
• Management VLAN :Yes
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• EAP653 UR
  • Ceiling/Wall Mounting Kit
  • Installation Guide
  Note: DC adapter is not included in the package, and is sold separately.
• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
