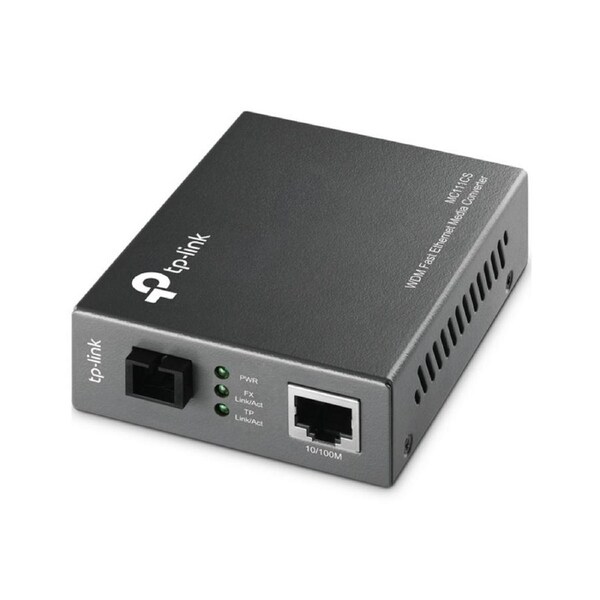

TP-Link MC111CS 10/100Mbps SC WDM Media Converter Monomode Simplex

TP-Link MC111CS, 10/100Mbps WDM Media Converter

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20km

MEDIA CONVERTER & MODULE

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u
• Basic Function :Adopts WDM technology
  Half/Full-Duplex transfer mode for FX port
  Extends fiber distance up to 20km
• Ports :1 100M SC/UPC port
  1 10/100M RJ45 port (Auto MDI/MDIX)
• Wave Length :1550nm Tx/1310nm Rx
• WDM TX :1550nm
• WDM RX :1310nm
• Network Media 10BASE-T :UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
• Network Media 100BASE-T :UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
• Network Media 100BASE-FX :Single-mode Fiber
• LED Indicators :PWR, Link/Act
• Dimensions (W*D*H) :3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
• Power Supply :External Power Adapter
• Max Power Consumption :1.23W
• Safety & Emission :FCC, CE, RoHS
• Package Contents :• Media Converter MC111CS
  • Power Adapter
  • Installation Guide
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
