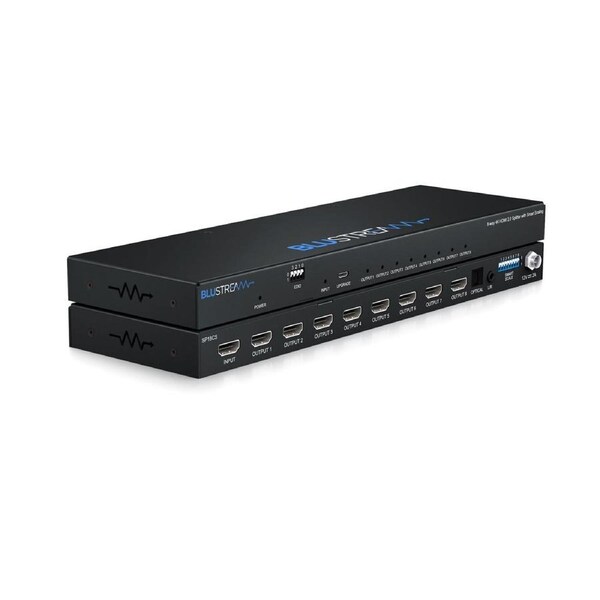

Blustream 8-Way 4K HDMI 2.0 HDCP 2.2 Splitter

Blustream 8-Way 4K HDMI 2.0 HDCP 2.2 Splitter

Our SP18CS 4K HDMI 2.0 splitter distributes a single HDMI source to eight simultaneous outputs with both digital (S/PDIF) and analogue audio breakout. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

Features:

• Features 1x HDMI input that is replicated to 8x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
• Advanced EDID management
• HDCP 2.2 Support

In the box:

• 1x SP18CS
• 1x 12V/2A DC power supply
• 1x Mounting Kit
• 1x Quick Reference Guide

Video Input Connectors: 1x HDMI Type A
* Video Output Connectors: 8x HDMI Type A
* EDID: 4-PIN DIP switch
* Smart Scale: 8-PIN DIP switch
* Audio Output Connectors: 1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack)
* Dimensions (W x D x H): 300mm x 92mm x 23mm
* Shipping Weight: 1.3kg
* Operating Temperature: 32oF to 104oF (0oC to 40oC)
* Storage Temperature : -4oF to 140oF (-20oC to 60oC)
* Power Supply: 12V/2A DC
