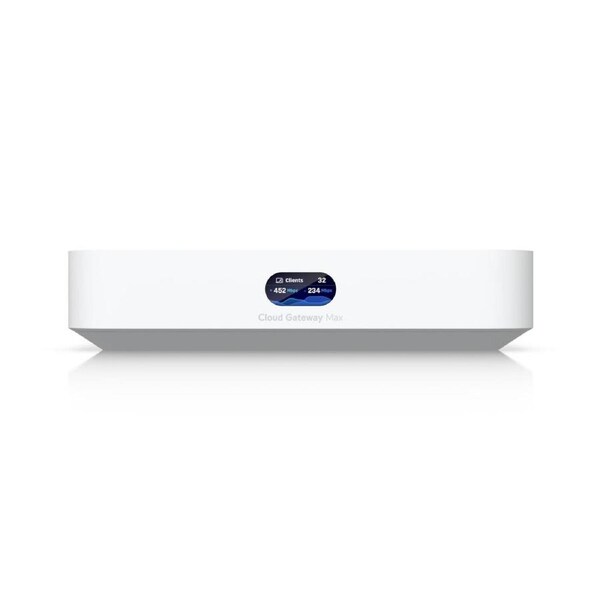

Ubiquiti Cloud Gateway Max, Compact 2.5G With 30+ UniFi device/300+ Client Support, 1.5 Gbps IPS Routing, Selectable NVR Storage, 2 Yr Warr
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.
- Includes full UniFi application suite for device management
- Manages 30+ UniFi devices and 300+ clients
- 1.5 Gbps routing with IDS/IPS
- Multi-WAN load balancing
- 512 GB NVMe SSD storage for NVR
- 0.96" LCM status display
USB-C powered (adapter included)
The Cloud Gateway Max is a palm-sized powerhouse that integrates advanced networking and security features. Its compact design ensures it fits seamlessly into small office environments while delivering robust performance.
Completely plug-and-play with no CloudKey required. Just add internet.
Natively load balance two WANs. Add a third with UniFi LTE Backup.
Protect your organisation with IPS, VPN, content filtering, and more.
Featuring 2.5 GbE ports, including one WAN and four LAN (one remappable), the Cloud Gateway Max offers 1.5 Gbps IPS routing. This ensures smooth, high-speed data transmission for demanding small business networks.
Manage up to 30 UniFi devices and over 300 connected clients through a single interface.
The complete UniFi experience in a strikingly compact form factor.
Technical Specs
Mechanical
Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight
519 g (1.1 lb)
Enclosure material
Polycarbonate
Hardware
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory
3 GB DDR4
On-board storage
512 GB NVMe SSD
Management interface
Ethernet, Bluetooth
Networking interface
LAN: (4) 1/2.5 GbE RJ45 ports
WAN: (1) 1/2.5 GbE RJ45 port
IDS/IPS throughput
1.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method
USB type C (5V DC/5A)
Supported voltage range
100-240V AC
Max. power consumption
16.1W
LCM display
0.96" status display
Button
Factory reset
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customisable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet
Green: link/activity
Application Requirements
Mobile app
UniFi iOS™ and Android™: Version 10.17.2 and later
