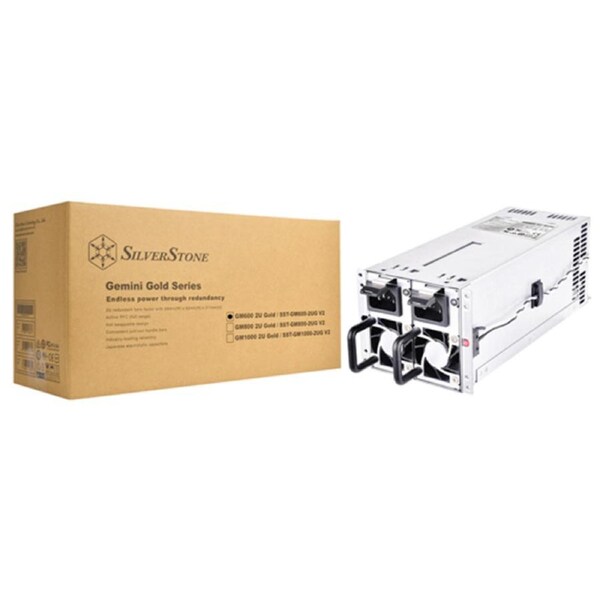

SilverStone 600W 2U Gold Redundant Power Supply (SST-GM600-2UG V2)
SPECIFICATIONS:
Max. DC Output | 600W |
Power density | 803W per litre |
Colour | Silver |
Combined +3.3V & +5V | 170W |
Load Range | Output +3.3V +5V +12V +5VSB -12V Max.(Amps) 25A 25A 50A 3.5A 0.8A Min.(Amps) 1.0A 1.0A 1.0A 0.1A 0A Range (%) 5% 5% 5% 5% 5% Line Reg.(%) 1% 1% 1% 1% 1% Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV |
Combined +12V | 600W |
Input Voltage | 90 ~ 264 Vrms |
Input Frequency Range | 47Hz ~ 63Hz |
PFC | Active PFC (PF>0.9 at full load) |
Efficiency | 87% & <89% overall efficiency with single modular power supply |
MTBF | >100,000 hours |
Operating temperature | 0C ~ 45C |
Protection | Over Current Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 2 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 9 x 4-Pin Peripheral connectors 1 x 4-Pin Floppy connector 1 x 2-Pin TTL connector 1 x 2-Pin PW1 connector 1 x 2-Pin PW2 connector 1 x PM Bus connector |
Cooling System | 40mm PWM fans |
Form factor | 1+1 2U redundant form factor |
Noise Level | 62.5 dBA maximum |
Fan speed | 22,000 RPM |
Dimension | 102mm (W) x 82mm (H) x 231mm (D) (Housing with bracket, without handle) 84mm (W) x 82mm (H) x 217mm (D) (Housing without bracket) 78mm (W) X 39mm (H) X 190mm (D) (Module only without handle) 4.02" (W) x 3.23" (H) x 9.09" (D) (Housing with bracket, without handle) 3.31" (W) x 3.23" (H) x 8.54" (D) (Housing without bracket) 3.07" (W) x 1.54" (H) x 7.48" (D) (Module only without handle) |
Weight | 3.13 kg |
