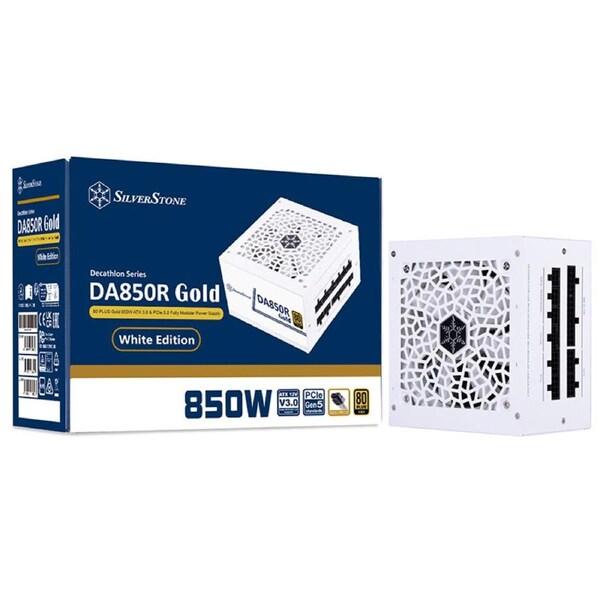

SilverStone 850W ATX 3.0 80+ Gold Power Supply - White (SST-DA850R-GMA-WWW)
SPECIFICATIONS:
Model (safety certification) | SST-AX0850MCGD-D | |||||
Color | White (lead-free paint) | |||||
Max. DC Output | 850W | |||||
Power density | 471W/L | |||||
Load Range | Output Max.(Amps) Min.(Amps) Range (%) Line Reg.(%) Ripple(mVp-p) | +3.3V 20A 0A 3% 1% 40mV | +5V 20A 0A 3% 1% 40mV | +12V 70.8A 0A +5%-7% 1% 80mV | +5VSB 3A 0A 5% 1% 40mV | -12V 0.3A 0A 8% 1% 80mV |
Combined +3.3V & +5V | 100W | |||||
Combined +12V | 850W | |||||
Input Voltage | 90 ~ 264 Vrms | |||||
Input Frequency Range | 47Hz ~ 63Hz | |||||
PFC | Active PFC (PF>0.9 at full load) | |||||
Efficiency | 87% & <89% | |||||
MTBF | 100,000 hours | |||||
Operating temperature | 0C ~ 50C | |||||
Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection | |||||
Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12V-2x6 connector 8 x SATA connectors 4 x 4-Pin Peripheral connector ※ DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables. | |||||
Cooling System | Silent 120mm fan | |||||
Noise Level | 0 dBA minimum | |||||
Certification | 80 PLUS Gold | |||||
Form factor | ATX (PS2) | |||||
Dimension | 150mm (W) 86mm (H) 140mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) | |||||
Weight | 2.13 kg |
