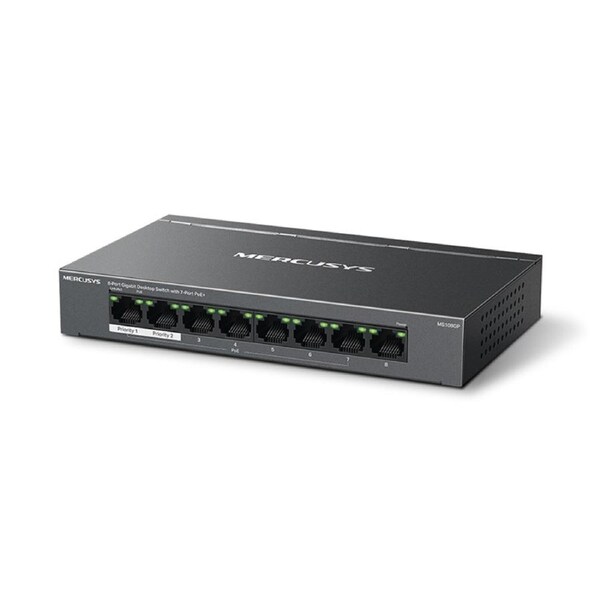

Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+
SPECIFICATIONS:
HARDWARE | |
Dimensions | 171*98*27 mm |
PoE Ports | RJ45 Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 7 PoE Power Budget: 65 W |
External Power Supply | External Power Adapter (Output: 53.5V/1.31A) |
Installation | Desktop Wall Mount |
Standards and Protocols | IEEE 802.3x Flow Control |
Data Rates | 10/100/1000 Mbps at Half Duplex 20/200/2000 Mbps at Full Duplex |
Jumbo Frame | 15 KB |
Mac Address Table | 8K |
Max Power Consumption | 5.07W (220 V / 50 Hz, no PD connected) 77.33W (220 V / 50 Hz, with 65W PD connected) |
Max Heat Dissipation | 17.238 BTH/h (no PD connected) 262.922 BTH/h (with 65W PD connected) |
OTHERS | |
Package Contents | 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP) Power Adapter Quick Installation Guide |
Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing |
Notes | *PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. |
