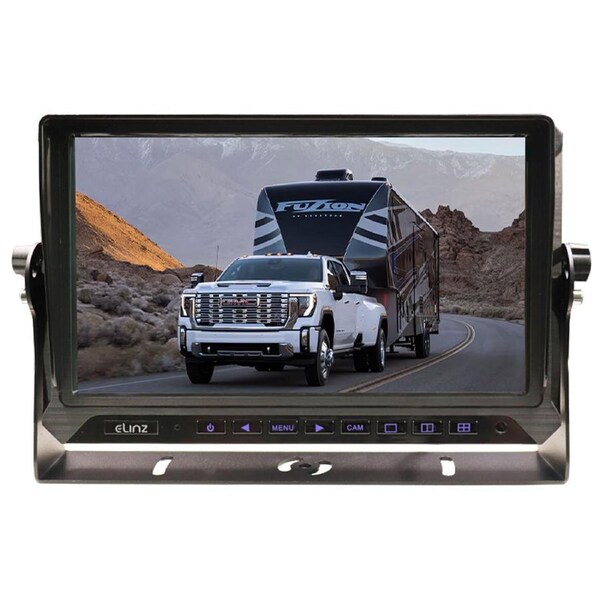

Elinz 10" AHD Monitor Wired 4PIN 3 Channel HD Video Inputs Single Screen View 12V 24V 1024*600 Dashboard Mount

The Elinz 10" AHD Monitor provides a high-definition (1024x600) display, delivering superior video quality compared to standard analog monitors. It's ideal for vehicles like cars, SUVs, RVs, utes, and trucks, offering clear, real-time views for enhanced visibility and safety.

• AHD (Analog High Definition)
  • AHD Analog High Definition monitors offer a higher resolution and quality video footage than standard analog monitors.
• 10" LCD Display
  • This 10" AHD Monitor offers 1024*600 screen resolution, perfect for enhancing visibility on Cars, SUVs, RVs, Utes, and Trucks providing real-time images so you can have a clear view of what's behind your vehicle.
• 3CH Single View
  • Supports up to three AHD cameras.
  • Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD.
• Guidelines On/Off
  • The monitor has built-in parking guidelines to make it easier and safer for you when reversing. Guidelines can be turned ON/OFF.
• DC 12-24V Power Source
  • Compatible with most vehicles with a power input range of DC12-24V. The monitor supplies DC12V power to the cameras.
• U Shape Bracket
  • This monitor is equipped with a U bracket that allows you to tilt or rotate the monitor on the desired position to have a better view of the displayed image. With this type of mount, this monitor can be mounted on the dashboard or roof of a truck/caravan/car or anywhere suitable.

• Screen Size: 10 inch
• Monitor Type: AHD
• Display Technology: LCD
• Screen Resolution: 1024*600
• Video Input: 720P/1080P
• Video Channels: 3CH
• Connection Type: 4PIN
• Power Consumption: <5W
• Operating Temperature: -30~ +70 ºC
• Input Voltage: DC12V-24V
• Output Voltage: DC12V
• Compatible Cameras: , , RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD

1. 1x Monitor
2. 1x U Bracket
3. 1x Power Cord
4. 1x User Manual
5. 1x Remote (* No Batteries included)
