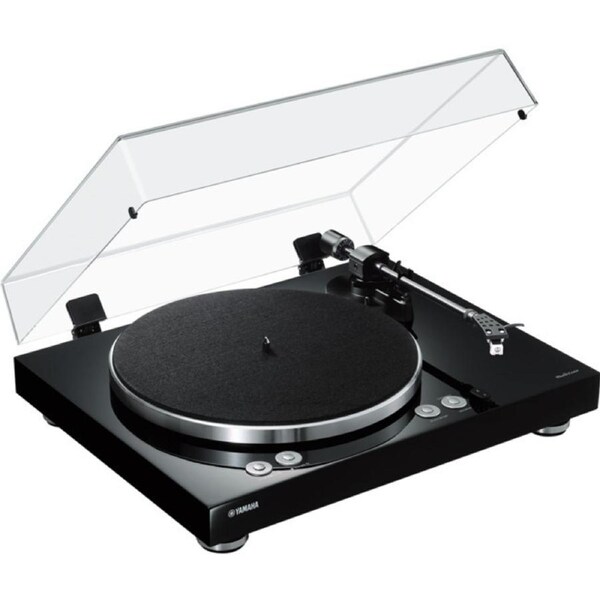

YAMAHA TTN503B MUSICCAST VINYL 500 TURNTABLE
MUSICCAST BLACK VINYL 500 TURNTABLE. - A NEW SPIN ON SOUND ( TTN503B )
A step into the future with a tribute to the past.
Meet our game-changing wireless turntable designed for a new generation of audiophiles.
Featuring MusicCast multi-room capabilities, share the joy of your record collection in any room.
- Wirelessly connect to any MusicCast device forseamless listening
- Straight tonearm contributes to sound transparency and openness
- Belt drive turntable
- Music streaming services built-in
- Wi-Fi built-in including support for 2.4 GHz and 5 GHz bands
| MusicCast VINYL 500 (TT-N503) |
|---|
| MusicCast VINYL 500 (TT-N503) | ||
|---|---|---|
| Turntable | ||
| Network Section | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz |
| Ethernet | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay | Yes | |
| Bluetooth Section | Version/Profile | Ver. 4.2 / A2DP, AVRCP |
| Audio Codec | SBC, AAC | |
| Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interferene) | |
| Turntable | Drive Method | Belt drive |
| Motor | DC motor | |
| Rotation Speed | 33-1/3 rpm, 45 rpm | |
| Rotation Speed Variation | 2% | |
| Wow And Flutter | 0.2% | |
| Platter | Aluminium die-cast (Diameter 30 cm) | |
| Output Level | 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm/ sec) | |
| Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) | |
| Tonearm | Tonearm | Static balance straight tonearm |
| Effective Arm Length | 223.5 mm | |
| Overhang | 19 mm | |
| Stylus Pressure Adjustment Range | 0-4 g | |
| Acceptable Cartridge Weight | 15.5-19 g (including headshell) | |
| Attached Cartridge | Cartridge Type | MM type |
| Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) | |
| Stylus Pressure | 3.5 0.5 g | |
| Cartridge Weight | 5.0 0.3 g | |
| Cartridge Height | 17.0 0.7 mm | |
| Head-shell Weight | 10 g (including screws, nuts and wires) | |
| Audio Specifications | Output Terminal | RCA: 2 (PHONO, LINE) |
| Output Level | 2.0 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) | |
| Signal to Noise Ratio | [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz) | |
| Dynamic Range | 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz) | |
| Harmonic Distortion | 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz) | |
| Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz ( 0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz ( 0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz ( 0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz ( 0 / -6 dB) | |
| General | Power Consumption | 6 W |
| Eco-Standby (reference date) | 0.3 W | |
| Standby Power Consumption | 1.4 W (Network standby ON, Bluetooth(R) standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standbyON, Wired) | |
| Dimension (WxHxD) | 450 x 136 x 368 mm; 17-3/4" x 5-3/8" x14-1/2" | |
| Weight | 5.7 kg; 12.6 lbs. |
