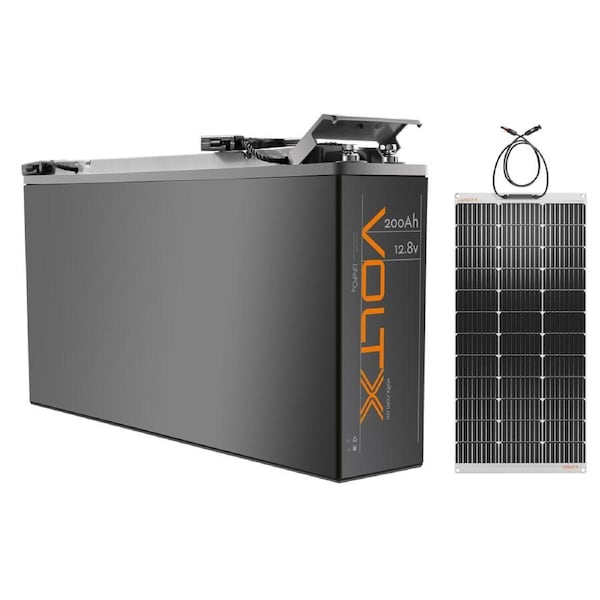

VoltX 12V Lithium Battery Slim 2560Wh + 100W Solar Panel
Specifications
- Quick Look
- Capacity: 12.8V 200Ah
- Rated Energy: 2560Wh
- Approx Life Cycles: 4000
- Battery Manage System: 150A
- Product Size: L552 x W110 x H290mm
- Tech Specs
- Brand: VoltX
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Rated Energy: 2560Wh
- Approx Life Cycles: 4000
- Battery Manage System: 150A
- Standard Charging Current: 75A
- Max. Charging Current: 150A
- Standard Discharge Current: 150A
- Max. Continuous Discharge Current: 150A
- Max. Discharge Current 5 sec: 300A
- Charger: 14.4V 75A
- Charging Voltage: 14.2-14.6V
- Absorption Voltage: 14.4V
- Float Voltage: 13.8V
- Overcharge Protection: 14.6V
- Overcharge Recovery: 14.2V
- Overdischarge Protection: 10V
- Overdischarge Recovery: 10.6V
- Charge Temperature : 0°C to 45°C
- Discharge Temperature : -20°C to 60°C
- Storage Temperature: -10°C to 50°C
- Charge Method: CC/CV
- Battery Cells: Prismatic
- Cell Grouping: 4S2P
- Parallel Connection: Max 6
- Series Connection: Max 6
- Case Material: ABS Plastic
- Battery Type: LiFePO4 Lithium Battery
- Battery Model: Slim 200Ah
- Certifications: IEC,FCC,UN38.3,CE
- Protection Class: IP65
- Warranty in Years: 5
- Dimensions & Weight
- Product Size: L552 x W110 x H290mm
- Package Size: L615 x W175x H333mm
- Net Weight: 20.5kg
- Gross Weight: 22kg
- Package List
- 1x VoltX Slim 200Ah Lithium Battery
- 2x Terminal Bolts M8*16
- 2x Insulating Covers
- 2x Screw Spring Washer
- 4x Screw Washers
- 1x User Manual
- Specifications
- Brand: VoltX
- Max Power: 100W
- Max Power Voltage (Vmp): 20V
- Max Power Current (lmp): 5A
- Open-Circuit Voltage (Voc): 24V
- Short-Circuit Current (Isc): 5.32A
- Max System Voltage: 1000V
- Max Series Fuse Rating: 15A
- Cell Efficiency: 22.5%
- Power Tolerance: 0-3W
- Module Efficiency STC (%): 18.2%
- Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
- Working Temperature: -20°C-60°C
- Temperature Coefficients of Pmax: TkPower: -0.38%/K
- Temperature Coefficients of Voc: TkVoltage: -0.36 %/K
- Temperature Coefficients of lsc: TkCurrent: +0.07%/K
- Nominal Operating Cell Temperature (NOCT): 45±2°C
- Type: Flexible
- Solar Cell: Mono-Si, Class A
- Cell Material: CPC
- Cell Tech: PERC
- Panel Leads (Pair-AWG): 4mm²
- Solar Connectors: 0.9m Cable With MC4 Connector
- Tie Down Points: Yes, 4 Points
- IP Rating: IP67
- Certifications: CE, ISO
- Warranty: 1 Years
- Dimensions & Weight
- Product Dimensions: L1085xW512xH2mm
- Package Dimensions: L1110xW560xH37mm
- Net Weight: 1.5kg
- Gross Weight: 2.6kg
- Package List
- 1x VoltX 100W Flexible Solar Panel
- 1x 0.9m Cable With MC4 Connector
Product 2: VoltX 100W Solar Panel Flexible
