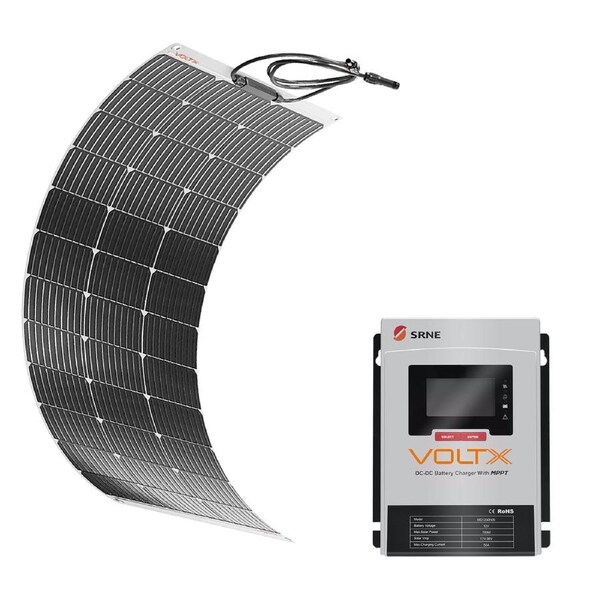

VoltX 100W Solar Panel Flexible + 50A DC-DC Charger

• Brand: VoltX
• Max Power: 100W
• Max Power Voltage (Vmp): 20V
• Max Power Current (lmp): 5A
• Open-Circuit Voltage (Voc): 24V
• Short-Circuit Current (Isc): 5.32A
• Max System Voltage: 1000V
• Max Series Fuse Rating: 15A
• Cell Efficiency: 22.5%
• Power Tolerance: 0-3W
• Module Efficiency STC (%): 18.2%
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -20°C-60°C
• Temperature Coefficients of Pmax: TkPower: -0.38%/K
• Temperature Coefficients of Voc: TkVoltage: -0.36 %/K
• Temperature Coefficients of lsc: TkCurrent: +0.07%/K
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Flexible
• Solar Cell: Mono-Si, Class A
• Cell Material: CPC
• Cell Tech: PERC
• Panel Leads (Pair-AWG): 4mm²
• Solar Connectors: 0.9m Cable With MC4 Connector
• Tie Down Points: Yes, 4 Points
• IP Rating: IP67
• Certifications: CE, ISO
• Warranty: 1 Years

• Product Dimensions: L1085xW512xH2mm
• Package Dimensions: L1110xW560xH37mm
• Net Weight: 1.5kg
• Gross Weight: 2.6kg

• 1x VoltX 100W Flexible Solar Panel
• 1x 0.9m Cable With MC4 Connector

• Model: MD1250N05
• Backup Battery System Voltage: 12V
• Backup Battery Voltage Range: 9~16V DC
• Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
• Rated Charging Current: 50A
• Maximum PV Input Voltage: 55V DC
• Max. power point voltage range: 17~36V
• Maximum PV Input Current: 45A
• Solar Panel Charging Mode: Buck MPPT
• MPPT Efficiency:>99%
• PV input power is recommended: 700W
• Generator (Starter Battery) System Voltage:12/24V
• Starter Battery Type: Lead-acid Battery
• Maximum Generator Input Voltage: 32V DC
• Maximum Generator Input Current:35A
• Conventional Generator: 13.2~16V/26.4~32V DC
• Intelligent (Euro 6 Standard) Generator: 12~16V/24~32V DC
• Generator charging mode: Buck , Boost , Buck-Boost
• 12V Backup Battery:700W
• Charging Voltage: 13.8V
• Charging Current: ≤25A
• No-load loss: <0.6W
• Maximum Charging Conversion Efficiency: 98%
• Communication method: TTL
• Operating temperature: -35°C~65°C
• Altitude: ≤3000m
• Waterproof level: IP32
• Product dimensions: 221*175.8*82.4mm
