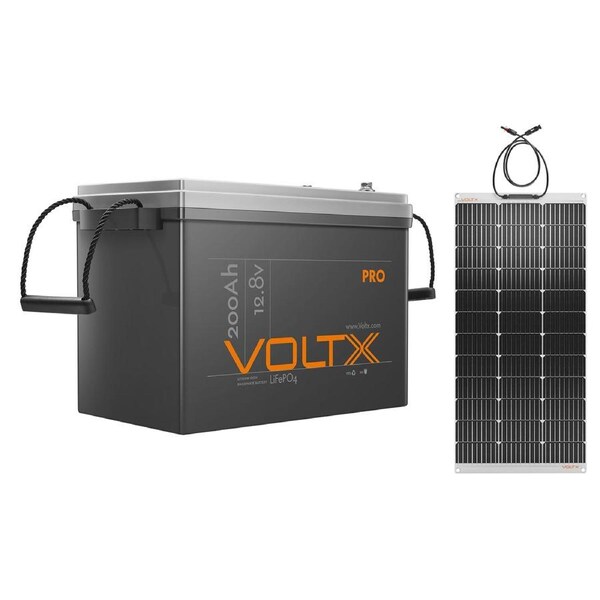

VoltX 12V Lithium Battery 200Ah + 100W Solar Panel Flexible

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Rated Energy:2560Wh
• Approx Life Cycles: 4000
• Battery Manage System: 200A
• Standard Charging Current: 100A
• Max. Charging Current: 200A
• Standard Discharge Current: 100A
• Max. Continuous Discharge Current: 200A
• Max. Discharge Current 5 sec: 300A

• Charger: 14.6V 50A
• Charging Voltage: 14.6V
• Absorption Voltage: 14.4V
• Float Voltage: 13.8V
• Overcharge Protection: 14.4V
• Overcharge Recovery: 14V
• Overdischarge Protection: 10.8V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: Prismatic
• Cell Grouping: 4S2P
• Parallel Connection: Max 6
• Series Connection: Max 6
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Pro 200Ah
• Certifications: IEC 62619
• Warranty in Years: 5

• Product Size: L345 x W190 x H245mm
• Package Size: L410 x W240 x H298mm
• Net Weight: 20kg
• Gross Weight: 21kg

• 1x VoltX Pro 200Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Brand: VoltX
• Max Power: 100W
• Max Power Voltage (Vmp): 20V
• Max Power Current (lmp): 5A
• Open-Circuit Voltage (Voc): 24V
• Short-Circuit Current (Isc): 5.32A
• Max System Voltage: 1000V
• Max Series Fuse Rating: 15A
• Cell Efficiency: 22.5%
• Power Tolerance: 0-3W
• Module Efficiency STC (%): 18.2%
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -20°C-60°C
• Temperature Coefficients of Pmax: TkPower: -0.38%/K
• Temperature Coefficients of Voc: TkVoltage: -0.36 %/K
• Temperature Coefficients of lsc: TkCurrent: +0.07%/K
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Flexible
• Solar Cell: Mono-Si, Class A
• Cell Material: CPC
• Cell Tech: PERC
• Panel Leads (Pair-AWG): 4mm²
• Solar Connectors: 0.9m Cable With MC4 Connector
• Tie Down Points: Yes, 4 Points
• IP Rating: IP67
• Certifications: CE, ISO
• Warranty: 1 Years

• Product Dimensions: L1085xW512xH2mm
• Package Dimensions: L1110xW560xH37mm
• Net Weight: 1.5kg
• Gross Weight: 2.6kg

• 1x VoltX 100W Flexible Solar Panel
• 1x 0.9m Cable With MC4 Connector
