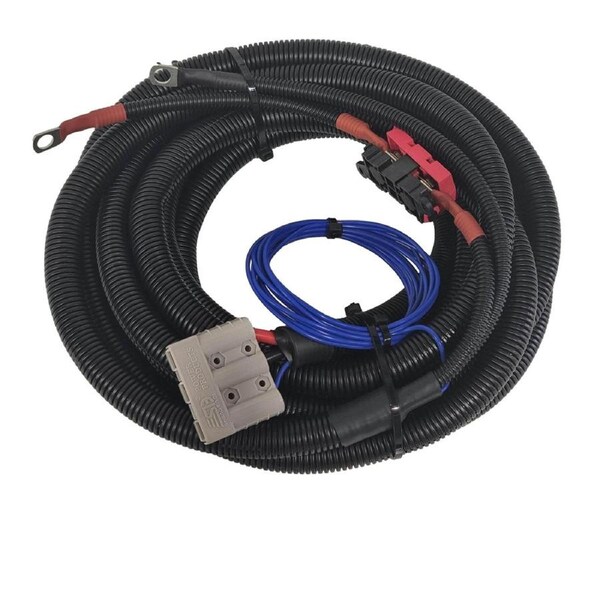

Ignition Sensing Lead 4 B&S x 7m w/ 4mm Ignition Wire -12/24v
Ignition Sensing Lead 4 B&S x 7m w/ 4mm Ignition Wire -12/24v
Perfect lead for running power to you DC to DC or BC to DC
Ignition Sensing Lead 4 B&S includes 4mm Ignition lead with fuse taps
Main Cable: 4 B&S (21mm2) twin core rated at 135 amps continuous as 2 x Single core
Ignition Wire: 4mm (1.84mm2) single core rated at 28 amps continuous as a single core
Battery lugs: 8mm ring heavy duty copper lugs (6 or 10mm can be substituted if required)
Fuse: 80 amp midi (slow blow) other amp rated fuses can be used from 20 amp to 175 amp
Connector: Triple Anderson Style Plug with Positive, Negative and Ignition Wire terminated
A 2nd Triple Anderson Style plug is included or we can substitute with lugs if going straight to a charger
Lead is pre made to 7m but we can make to any length required. Please contact to make a change
We also include a standard size and a mini size fuse tap for the ignition wire
Australia Made accredited item
Ignition Sensing Lead 4 B&S x 7m w/ 4mm Ignition Wire -12/24v
Ignition Sensing Lead 4 B&S x 7m w/ 4mm Ignition Wire -12/24v
Perfect lead for running power to you DC to DC or BC to DC
Ignition Sensing Lead 4 B&S includes 4mm Ignition lead with fuse taps
Main Cable: 4 B&S (21mm2) twin core rated at 135 amps continuous as 2 x Single core
Ignition Wire: 4mm (1.84mm2) single core rated at 28 amps continuous as a single core
Battery lugs: 8mm ring heavy duty copper lugs (6 or 10mm can be substituted if required)
Fuse: 80 amp midi (slow blow) other amp rated fuses can be used from 20 amp to 175 amp
Connector: Triple Anderson Style Plug with Positive, Negative and Ignition Wire terminated
A 2nd Triple Anderson Style plug is included or we can substitute with lugs if going straight to a charger
Lead is pre made to 7m but we can make to any length required. Please contact to make a change
We also include a standard size and a mini size fuse tap for the ignition wire
Australia Made accredited item
Ignition Sensing Lead 4 B&S x 7m w/ 4mm Ignition Wire -12/24v
