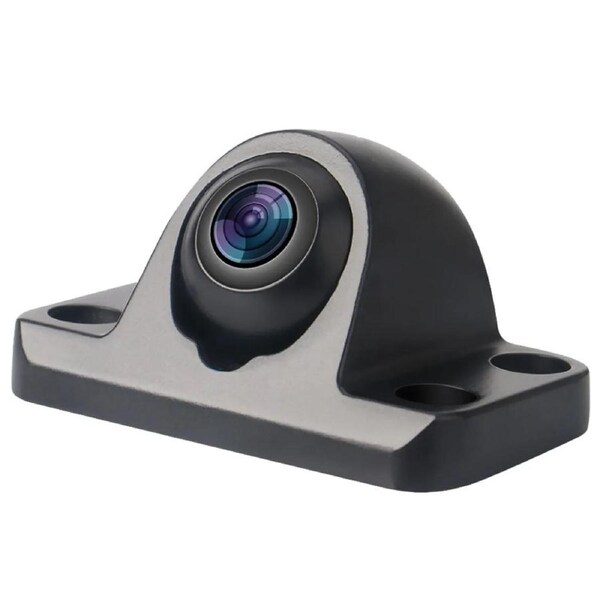

Elinz 1080P AHD Reversing Rear View 4PIN Mini Eyeball Car Truck Caravan CMOS Camera

The Elinz 1080P AHD Reversing Rear View 4PIN Mini Eyeball Camera offers superior image clarity with its 1080P Full HD resolution and advanced Starvis sensor for enhanced low-light performance. Featuring a 120° field of view, an IP68 waterproof rating, and a durable 4-pin aviation connector, this camera ensures reliable and clear reversing visibility in all conditions.

• AHD Camera
  • This new AHD Analog High Definition reversing camera has a higher image resolution than the standard CVBS cameras in the market today.
• 1080P Full HD
  • This camera offers you a more vivid colour and a clearer view of what's behind your vehicle in a real 1080P Full High Definition.
• Starvis Sensor
  • The Starvis sensor has a higher sensitivity to recognize colours that delivers sharper, clearer, and more detailed images during daytime.
• Perfect Field of View
  • With a 1/2.8 sensor that provides you with a 120° field of view, reducing blind spots for reversing and a more realistic viewing angle. It's perfect for monitoring and reversing as it reduces distortions and fisheye effects, unlike other camera brands
• 4PIN Connector
  • The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
• IP68 Waterproof
  • This camera is completely protected against dust and can withstand fresh water immersion of up to 1 meter.

• Technology: AHD
• Image sensor: Starvis 1/2.8" 1080P CMOS Sensor
• TV system: PAL/NTSC
• Effective Pixel: 1920(H)*1080(V)
• Pixels Size: 2.8μm*2.8μm
• Resolution: 2.0 Mega Pixels
• Minimum illumination: 0.01Lux/F1.8 (0 Lux With LED)
• Night Vision: n/a
• Image: Mirror image
• View Angle: 120°
• Waterproof Level: IP68
• Working Voltage: DC12V
• Current Consumption: <150mA
• Waterproof Rating: IP68
• Gamma Factor: 0.45
• Vertical Sync Frequency: 50Hz / 60Hz
• Horizontal Sync Frequency: 15.625KHz / 15.734KHz
• Internal Sync Definition: 1000 TVL
• Connector: 4PIN
• Compatible Monitors: M7AHD, M500AHD, M525AHD, M725AHD, M1025AHD

1. 1x 4PIN Mini Eyeball Reversing Camera

2. 1x Adhesive

3. 1x Screws
