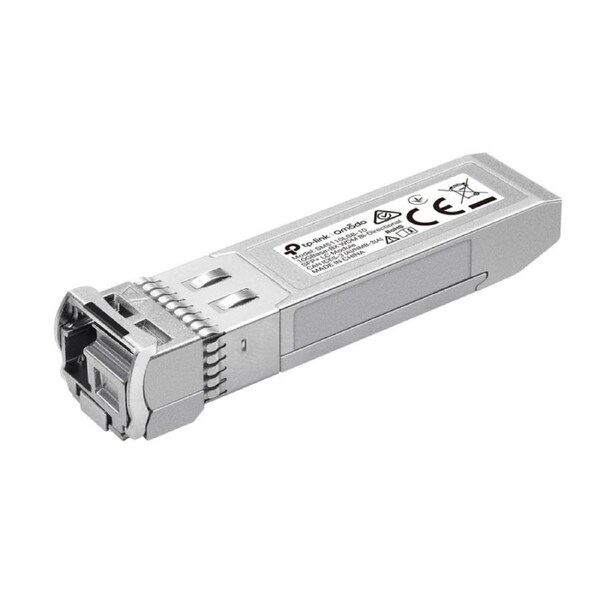

TP-Link SM5110LSB-10 Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

TP-Link SM5110LSB-10, Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

• Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
• Single mode SFP+LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10GSmall Form Pluggable Multi-Source Agreement (SFP+)
• Compatible with switches with 10G ports like SG3428X and SG3452X

Transceiver

• Standards and Protocols :IEEE 802.3ae
  SFF 8431, SFF 8432, SFF-8472
• Wavelength :TX: 1270nm
  RX: 1330nm
• Power Supply :3.3V
• Fiber Type :9?m/125?m Single-Mode
• Max. Cable Length :10km
• Data Rate :10.3125 Gbps
• Connector :LC/UPC
• Regulatory Compliance :CE, FCC, RoHS
• Environment :Operating Temperature: 0°C to 70°C (32-158 ?)
  Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  Operating Humidity: 10% to 90% RH non-condensing
  Storage Humidity: 5% to 90% RH non-condensing

HARDWARE FEATURES

• DDM :Yes
• Hot Swappable :Yes
• Dimensions ( W x D x H ) :2.24*0.55*0.47 in (57*14*12.0 mm)

PACKAGE CONTENTS

• Package Contents :SM5110LSB-10
  Installation Guide
