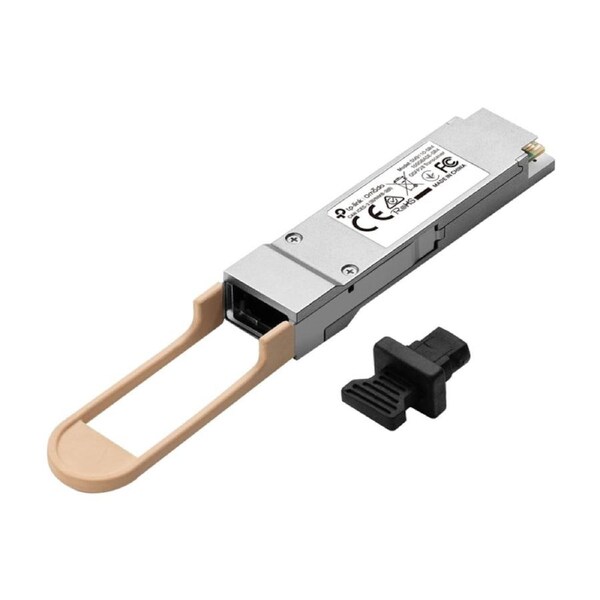

[SM9110-SR4] Omada 100GBASE-SR4 QSFP28 Transceiver

TP-Link SM9110-SR4, Omada 100GBASE-SR4 QSFP28 Transceiver

• 100GBASE-SR4 multi-mode QSFP28 Transceiver
• Supports Digital Diagnostic Monitoring (DDM)
• Up to 100 m transmission distance
• Hot-Pluggable with maximum flexibility
• Wide operating temperature
• Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

Transceiver

• Form Factor :QSFP28
• Standards and Protocols :IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
  SFF-8665, SFF-8636, SFF-8436,
  CPRI, eCPRI
  TCP/IP
• Wave Length :850 nm
• Power Supply :3.3 V
• Power Consumption :Max 1.8 W at 100 Gbps
  Max 1.54 W at 40 Gbps
• Fiber Type :50/125um MMF (Multimode)
• Max. Cable Length :70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps)
  100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)
• Data Rate :Dual Rate 103.125 Gbps and 41.2 Gbps
• Connector :MTP/MPO-12
• Transmitter Type :VCSEL 850 nm
• Receiver Type :PIN
• Transmitter Power :-8.4 dBm to 2.4 dBm @103.125 Gbps
  -7.6 dBm to 2.4 dBm @41.2 Gbps
• Receiver Sensitivity :<-10.3 dBm @103.125 Gbps
  <-9.5 dBm @41.2 Gbps
• Receiver Overload :>2.4 dBm @103.125 Gbps
  >2.4 dBm @41.2 Gbps
• Extinction Ratio :>2 dB @103.125 Gbps
  >3 dB @41.2 Gbps
• Regulatory Compliance :CE, FCC, RoHS

HARDWARE FEATURES

• DDM :Yes
• QSFP28 MSA :Yes
• Hot Swappable :Yes
• Dimensions ( W x D x H ) :4.88*0.72*0.46 in (124*18.35*11.7 mm)

PACKAGE CONTENTS

• Package Contents :SM9110-SR4
  Installation Guide

ENVIRONMENT

• Operating Temperature :0°C to 70°C (32°F to 158°F)
• Storage Temperature :-40°C to 85°C (-40°F to 185°F)
• Operating Humidity :0 to 85% RH Non-condensing
• Storage Humidity :0 to 85% RH Non-condensing
