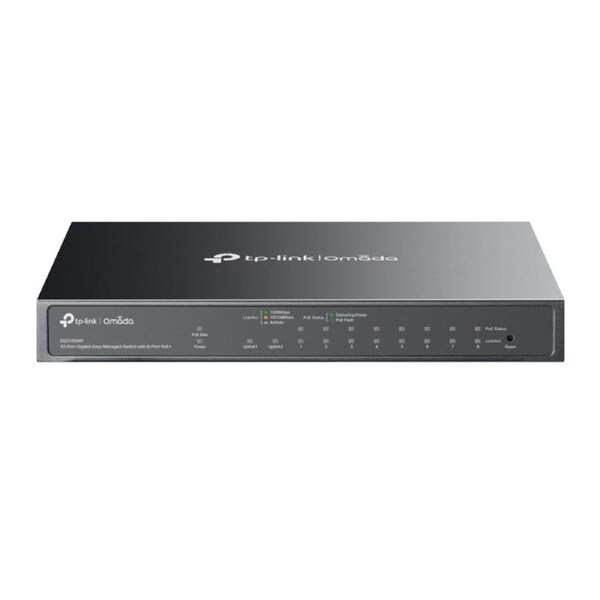

[ES210GMP] Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

TP-Link ES210GMP, Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

• 8x Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 1x Gigabit RJ45 port, 1x Gigabit SFP/RJ45 Combo port
• 123W Power Budget, with up to 30Wfor each PoE port*
• Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS?, PoE Auto Recovery†, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design
• Learn more about OmadaPoE technology >
• Learn more about Omada Cloud SDN>?

HARDWARE FEATURES

• Interface :8x 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
  1x 10/100/1000 Mbps RJ45 Port
  1x Gigabit SFP/RJ45 Combo Port
  Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity :Fanless
• Installation :Desktop
  Wall Mount
• Physical Security Lock :?
• Power Supply :DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
• PoE Ports (RJ45) :Standard: 802.3af PoE and 802.3at PoE+ compliant
  PoE Ports: 8 ports
  PoE Budget: 123W available for all PoE+ ports, 30W max per port
  PoE Auto Recovery^†
  Up to 250m PoE transmission distance**
• Dimensions ( W x D x H ) :8.2x4.9x1.0 in (209x126x26 mm)
• Surge Protection :±6kV

PERFORMANCE

• Switching Capacity :20 Gbps
• Packet Forwarding Rate :14.88 Mpps
• MAC Address Table :8K
• Packet Buffer Memory :4 Mbit
• Jumbo Frame :15 KB

SOFTWARE FEATURES

• Quality of Service :Port-based/802.1p/DSCP QoS
  8 Priority Queues
  Priority Schedule Mode
  - WRR (Weighted Round Robin)
  Queue Weight Config
  Bandwidth Control
  - Port-Based Rating Limit
  Storm Control
  - Multiple Control Modes (kbps/pps)
  - Broadcast/Multicast/Unknown-Unicast Control^?
• L2 Features :Static Link Aggregation
  Loop Prevention / Loopback Detection
  Flow Control
  - 802.3x Flow Control
  Mirroring
  - Port Mirroring
  - One-to-One
  - Many-to-One
  - Ingress/Egress/Both
  Port Statistics
  - Port Mirror Status
  - Traffic Statistics
  802.1ab LLDP
• L2 Multicast :IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
• VLAN :MTU VLAN
  Port-Based VLAN
  802.1Q Tag VLAN
  - Max 32 VLAN Groups
  - 4K VID
• Transmission Method :Store-And-Forward

MANAGEMENT

• Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller
• Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller
• Management Features :Web-based GUI
  DHCP Client
  Cable Diagnostics
  Automatic Device Discovery^†
  Batch Configuration^†
  Batch Firmware Upgrading^†
  Unified Configuration^†

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :ES210GMP
  Power Adapter
  Installation Guide
  Rubber Feet
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
