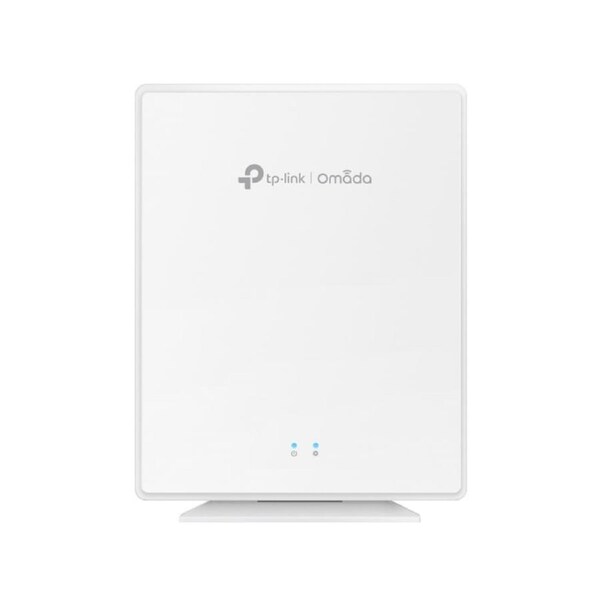

[EAP650-Desktop] Omada AX3000 Desktop Wi-Fi 6 Access Point

TP-Link EAP650-Desktop, Omada AX3000 Desktop Wi-Fi 6 Access Point

• Blazing-Fast AX3000 Wi-Fi 6 Speeds:574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps Wi-Fi speeds. †
• Multiple Gigabit Ports:Connect multiple devices with 4x Gigabit Ethernet Ports.
• Convenient Deployment:Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
• NoInstallation needed:Supportsdesktop installation without the need for additionalsetup.
• High Flexibility:Provide flexible installation solutions for both desktop and wall mounting.
• Stay Smooth with Seamless Roaming:Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.§
• Centralised Cloud Management:Integrates with the Omada SDN platform for Centralised Management. §

HARDWARE FEATURES

• Interface :4x 1Gbps Ethernet Ports + 1x FXS Port
  (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
• Button :Reset
  LED
• Power Supply :802.3 af/at/bt PoE or 12V/1.5A DC
  *PoE Out requires 802.3at/bt PoE power supply
• Power Consumption :17.3W (PoE Out Off)
• Weight :452g (excluding mounting base)
• Dimensions ( W x D x H ) :6.9 x 5.5 x 1.3 in (175 x 140 x 33 mm)
• Antenna Type :Internal Omni
  2.4 GHz: 2x 5 dBi
  5 GHz: 3x 4.7 dBi
• Range :140?(1500 ft²)*
• Mounting :Desktop / Wall mouting (Kits included)

WIRELESS FEATURES

• Concurrent Clients :250+^*
• Wireless Standards :IEEE 802.11 a/b/g/n/ac/ax
• Frequency :2.4 GHz and 5 GHz
• Signal Rate :5 GHz: 2402 Mbps^†
  2.4 GHz: 574 Mbps
• Wireless Functions :2x2 (2.4G & 5G) MU-MIMO^†
  HE160 (160 MHz Bandwidth)^†
  OFDMA^†
  Seamless Roaming^§
  Multiple SSIDs (16 SSIDs, 8 on each band)
  Enable/Disable SSID Broadcast
  Enable/Disable Wireless Radio
  Guest Network
  Automatic Channel Assignment
  Beamforming
  Rate Limit (Based on SSID/Client)
  Band Steering
  Load Balance
  Airtime Fairness
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS (WMM)
  RADIUS Accounting
  MAC Authentication
  Reboot Schedule
  Wireless Schedule and Statistics
  Static IP/Dynamic IP
• Wireless Security :Captive Portal Authentication^§
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power :CE:
  <20 dBm(2.4 GHz, EIRP)
  <23 dBm(5 GHz, band1 & band2, EIRP)
  <29 dBm(5 GHz, band3, EIRP)
  FCC:
  <26 dBm (2.4 GHz)
  <27 dBm (5 GHz)

MANAGEMENT

• Omada App :Yes
• Centralized Management :Omada Hardware Controller
  Omada Software Controller
  Omada Cloud-Based Controller
• Cloud Access :Yes.
• Email Alerts :Yes
• LED ON/OFF Control :Yes
• Management MAC Access Control :Yes
• SNMP :v1, v2c, v3
• System Logging Local/Remote Syslog :System Log
• SSH :Yes
• Web-based Management :Yes
• Zero-Touch Provisioning :Yes.Reauire the use of Omada Cloud-Based controller

OTHERS

• Certification :CE, FCC, RoHS, IC
• Package Contents :EAP650-Desktop
  Desktop/Wall Mounting Kit
  Installation Guide
• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment :Operating Temperature: 0-40 ? (32-104 ?)
  Storage Temperature: -40-70 ? (-40-158 ?)
  Operating Humidity: 10-90% RH non-condensing
  Storage Humidity: 5-90% RH non-condensing
