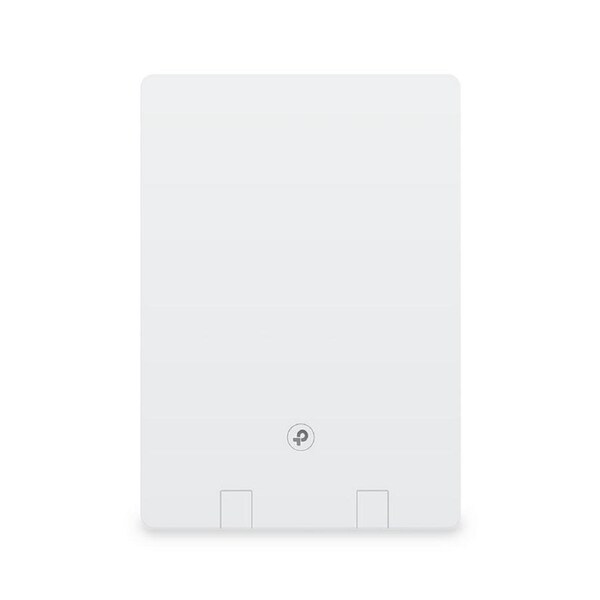

[Archer Air R5] AX3000 Dual-Band Wi-Fi 6 Air Router

TP-Link Archer Air R5, AX3000 Dual-Band Wi-Fi 6 Air Router

• Next-Gen Gigabit Wi-Fi 6 Speed-2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.1
• Smart Antennas- Uses intelligent algorithms to auto-detect your devices' locations and adjust antennas' direction for all-round stable signals.
• Ultra-Low Latency-Enables more responsive gaming and video chatting.
• TP-Link HomeShieldEnhanced security defends against the latest cyber threats.
• EasyMesh-Compatible-Works with EasyMesh-compatible routers to create a whole home seamless mesh network.3
• Flexible Installation- Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket.

WIRELESS

• Standards :Wi-Fi 6
  IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds :AX3000
  5 GHz: 2402 Mbps (802.11ax, HE160)
  2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range :3 Bedroom Houses
  Multiple antennas form a signal-boosting array to cover more directions and large areas
  Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range
  High-Power FEM
  Improves transmission power to strengthen signal coverage
• WiFi Capacity :High
  Dual-Band
  Allocate devices to different bands for optimal performance
  OFDMA
  Simultaneously communicates with multiple Wi-Fi 6 clients
  Airtime Fairness
  Improves network efficiency by limiting excessive occupation
  4 Streams
  Connect your devices to more bandwidth
• Working Modes :Router Mode
  AP Mode

SECURITY

• Network Security :HomeShield Security
  Real-Time IoT Protection
  Malicious Site Blocker
  Intrusion Prevention System
  DDoS Attack Prevention
  Home Network Scanner
• Guest Network :1x 5 GHz Guest Network
  1x 2.4 GHz Guest Network
• VPN Server :PPTP ServerN
  OpenVPN ServerN
• WiFi Encryption :WPA/WPA2
  WPA3
  WPA/WPA2-PSK

HARDWARE

• Ethernet Ports :1x Gigabit WAN Port
  1x Gigabit LAN Port
• Buttons :WPS Button
  Reset Button

SOFTWARE

• Protocols :IPv4
  IPv6
• Service Kits :HomeShield

• EasyMesh :Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

• Parental Controls :HomeShield Parental Controls
  Custom Profiles
  Professional Content Filter Library
  Family Time
  Bedtime
  Off Time
  Time Rewards
  Family Online Time Ranking
  Pause the Internet
  Weekly and Monthly Reports
• WAN Types :Dynamic IP
  Static IP
  PPPoE
  PPPoE + Dynamic IP
  PPPoE + Static IP
  L2TP + Dynamic IP
  L2TP + Static IP
  PPTP + Dynamic IP
  PPTP + Static IP
• Quality of Service :QoS by Device
• Cloud Service :FOTA Firmware Upgrade
  TP-Link ID
  DDNS
• NAT Forwarding :Port Fowarding
  Port Triggering
  DMZ
  UPnP
• IPTV :Profile
  Bridge
  Custom
  Allowed range of VLAN ID
• DHCP :DHCP Server
  Address Reservation
  DHCP Client List
• DDNS :TP-Link
  NO-IP
  DynDNS
• Management :Tether App
  Webpage


OTHER

• System Requirements :Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  Cable or DSL Modem (if needed)
  Subscription with an internet service provider (for internet access)
• Certifications :FCC, CE, RoHS
• Environment :Operating Temperature: 0?~40? (32? ~104?)
  Storage Temperature: -40~60?
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90%

TEST DATA

• WiFi Transmission Power :CE:
  <20dBm(2.4GHz)
  <23dBm(5.15GHz~5.35GHz)
  <30dBm(5.47GHz~5.725GHz)
  FCC:
  <30dBm(2.4GHz & 5.15GHz~5.825GHz)
• WiFi Reception Sensitivity :5GHz-band1:
  11a 6Mbps:-97dBm
  11a 54Mbps:-78dBm
  11ac HT20 MCS8:-74dBm
  11ac HT40 MCS9:-69dBm
  11ac HT80 MCS9:-65dBm
  11ax HE20 MCS0: -97dBm
  11ax HE20 MCS11: -66dBm
  11ax HE40 MCS0: -94dBm
  11ax HE40 MCS11: -63dBm
  11ax HE80 MCS0: -91dBm
  11ax HE80 MCS11: -60dBm
  5GHz-band2:
  11a 6Mbps:-97dBm
  11a 54Mbps:-78dBm
  11ac HT20 MCS8:-74dBm
  11ac HT40 MCS9:-69dBm
  11ac HT80 MCS9:-65dBm
  11ax HE20 MCS0: -97dBm
  11ax HE20 MCS11: -66dBm
  11ax HE40 MCS0: -94dBm
  11ax HE40 MCS11: -63dBm
  11ax HE80 MCS0: -91dBm
  11ax HE80 MCS11: -60dBm
  11ax HE160 MCS0: -88dBm
  11ax HE160 MCS11: -58dBm
  5GHz-band3:
  11a 6Mbps:-97dBm
  11a 54Mbps:-78dBm
  11ac HT20 MCS8:-74dBm
  11ac HT40 MCS9:-69dBm
  11ac HT80 MCS9:-65dBm
  11ax HE20 MCS0: -97dBm
  11ax HE20 MCS11: -66dBm
  11ax HE40 MCS0: -94dBm
  11ax HE40 MCS11: -63dBm
  11ax HE80 MCS0: -91dBm
  11ax HE80 MCS11: -60dBm
  11ax HE160 MCS0: -88dBm
  11ax HE160 MCS11: -58dBm
  2.4GHz:
  11g 6Mbps:-96dBm
  11g 54Mbps:-78dBm
  11n HT20 MCS7:-76dBm
  11n HT40 MCS7:-72dBm
  11ax HE20 MCS0: -95dBm
  11ax HE20 MCS11: -65dBm
  11ax HE40 MCS0: -93dBm
  11ax HE40 MCS11: -62dBm

PHYSICAL

• Dimensions (WxDxH) :8.3 x 5.5 x 0.4 in
  (210 x 140 x 10.8 mm)
• Package Contents :Wireless Router Archer Air R5
  Quick Installation Guide
  Power Adapter
  Plastic Bracket
  Gigabit Network Cable
  Installation Accessories
