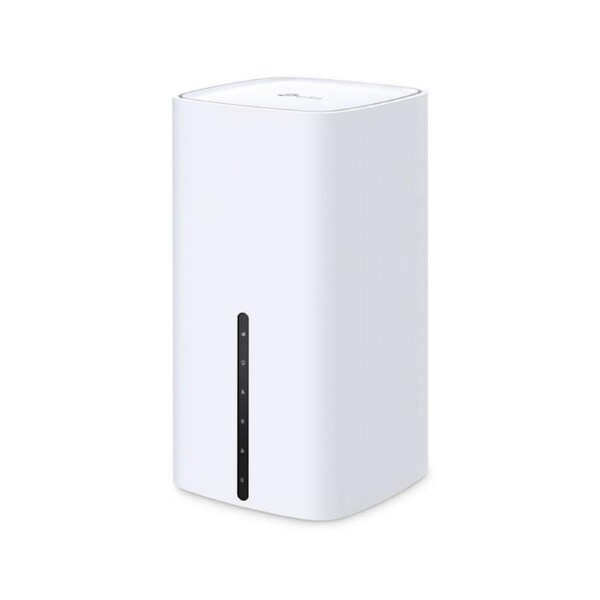

[Archer NX600] 5G AX3600 Wireless Dual-Band 2.5 Gig Router

TP-Link Archer NX600, 5G AX3600 Wireless Dual-Band 2.5 Gig Router

• Boost Your 5GSpeedTake advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
• AX3600Dual-Band Wi-Fi 6Speed2402Mbps (5 GHz) + 1148 Mbps (2.4 GHz).
• Plug &PlayEnjoy 5G network right after inserting a SIM card.
• EasyMesh-CompatibleCo-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
• 2.5 Gbps WAN/LANPort -The2.5 Gbps WAN/LANport enables NX600 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.

HARDWARE FEATURES

• Interface :1 x 2.5 Gbps WAN/LAN Port
  2 x 10/100/1000 Mbps LAN Ports
  1 x Nano SIM Card Slot
  2 x External SMA-F Antenna Interface
• Button :WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
• External Power Supply :Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
  Output parameter 12VDC 2A
• Dimensions ( W x D x H ) :3.9 x 3.9 x 7.5 in ( 99 x 99 x 190 mm)
• Antenna :8 x 5G/LTE Internal Antennas
  2 x Wi-Fi Internal Antennas

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/b/g 2.4 GHz
• Frequency :2.4 GHz and 5 GHz
• Signal Rate :1148 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz
• Reception Sensitivity :5GHz?
  11a 54M?-80 dBm
  11ax HE20?-68 dBm
  11ax HE40?-65 dBm
  11ax HE80?-62 dBm
  11ac VHT20?-76 dBm
  11ac VHT40?-72 dBm
  11ac VHT80?-68 dBm
  11n HT20?-79 dBm
  11n HT40?-75 dBm
  2.4GHz
  11g 54M?-78 dBm
  11ax HE20?-65 dBm
  11ax HE40?-62 dBm
  11ac VHT20?-73 dBm
  11ac VHT40?-68 dBm
  11n HT20?-75 dBm
  11n HT40?-72 dBm
• Transmit Power :<23dBm (5.15GHz~5.35GHz)
  <30dBm (5.47GHz~5.71GHz)
  <20dBm (2.4GHz)
• Wireless Functions :Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
  Statistics
• WAN Failover :Yes
• Wireless Security :64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type :5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
  FDD-LTE: B1/B3/B5/B7/B8/B20/B28/ (2100/1800/850/2600/900/800/700 MHz)
  TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
  DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

• Quality of Service :Prioritizes network traffic by device or application
• Security :DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
• WAN Type :Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management :TP-Link Cloud, Local Management, Remote Management
• DHCP :Server, DHCP Client List, Address Reservation
• Port Forwarding :ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS :TP-Link, DynDns, NO-IP
• VPN :PPTP VPN, IPSec VPN , OpenVPN
• Access Control :Parental Control, Local Management Control
• Firewall Security :DoS, SPI Firewall, IP Address Filter/Domain Filter,
  IP and MAC Address Binding
• Protocols :IPv4, IPv6
• Guest Network :2.4 GHz Guest Network x 1
  5 GHz Guest Network x 1

OTHERS

• Certification :CE, RCM, RoHS
• Package Contents :5G AX3600 Wireless Dual-Band Gigabit Router Archer NX600
  1.5m Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
• System Requirements :Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
  NetWare, UNIX or Linux
  Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
  Java-enabled browser
  Nano SIM Card
• Environment :Operating Temperature: 0?~40? (32? ~104?)
  Storage Temperature: -40?~70? (-40? ~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
