For 27.5 Inch wheel with a width between 1.75 to 2.25 Inch
Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
Torque: 65 N.M
Wiring Method: Waterproof Wire Connection System
Maximum Speed: 60 km/h
Display: Intelligent Colorful LCD Panel Display
Controller: Intelligent Motor Controller, the Current is 35±1A
Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
Brake levers: Aluminum Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
PAS Sensor: 12 Magnets Pedal Assist Sensor
Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
12 Months Warranty on the Motor

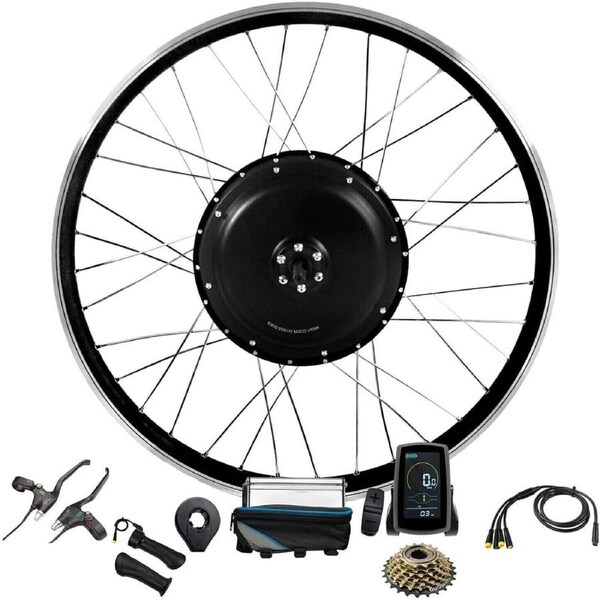

Package Include :
1x 48V 1500W Rear Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Twist Throttle
1x LCD Display
1x Cable Ties Set
1x Manual
1x 6 or 7 Speed Freewheel
Important Notes:
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
Battery and charger are not included in this listing. Our 1500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 35A and a nominal capacity of not less than 15Ah.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
