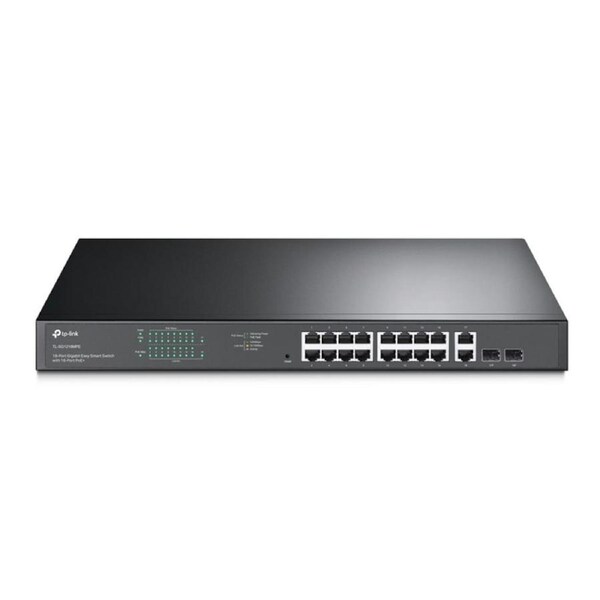

[TL-SG1218MPE] 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots

TP-Link TL-SG1218MPE, 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots

• 16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
• PoE power budget is up to 250W, making it ideal for small to medium business surveillance systems
• Port Priorityis able toguaranteethe quality of sensitive applicationlike video monitor
• Intelligent power management can protect the switch from overload
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.
• Learn more about TP-LinkPoE technology >

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface :16x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  2x 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  2x Combo Gigabit SFP Ports
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-X MMF, SMF
• Fan Quantity :2 Fans
• Physical Security Lock :Yes
• Power Supply :100-240V AC, 50/60 Hz
• PoE+ Ports(RJ45) :Standard: 802.3at/802.3af compliant
  PoE+ Ports: Ports 1-16
  Power Supply: 250 W
• Dimensions ( W x D x H ) :17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)
• Mounting :Rack Mountable
• Max Power Consumption :21.4 W (220/50Hz. no PD connected)
  296.3 W (220/50Hz. with 250 W PD connected)
• Max Heat Dissipation :72.97 BTU/h (no PD connected)
  1010.38 BTU/h (with 250 W PD connected)

PERFORMANCE

• Switching Capacity :36 Gbps
• Packet Forwarding Rate :26.78 Mbps
• MAC Address Table :8K
• Packet Buffer Memory :4.1 Mbit
• Jumbo Frame :10 KB

SOFTWARE FEATURES

• Quality of Service :Support Port-based 802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control
• L2 Features :IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
  PoE Auto Recovery
• VLAN :Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN
• Management :Web-based GUI
  Easy Smart Configuration Utility
• Transmission Method :Store-And-Forward

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :TL-SG1218MPE
  Power Cord
  Installation Guide
  Rackmount Kit
  Rubber Feet
• Environment :Operating Temperature: 0-50 °C (32-122 °F)
  Storage Temperature: -40-70 °C (-40-158 °F)
  Operating Humidity: 10-90% RH non-condensing
  Storage Humidity: 5-90% RH non-condensing
