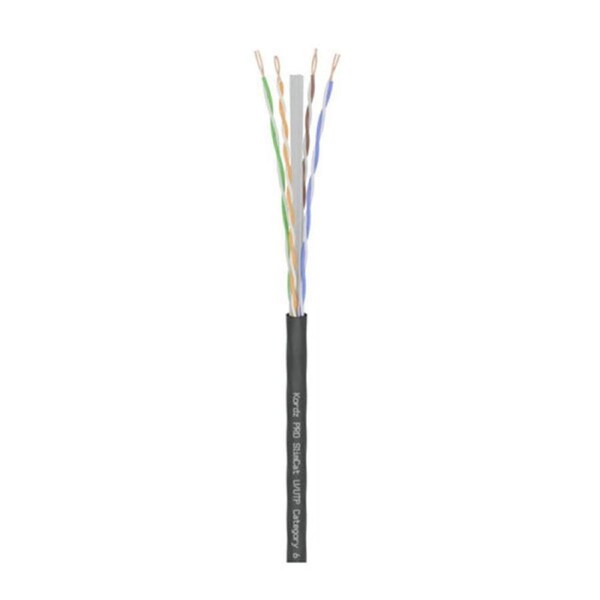

Kordz Pro Slimcat Network Cable Category 6 305M Black
KORDZ PRO SLIMCAT NETWORK CABLE, CATEGORY 6, U/UTP, UNTERMINATED, 305M BLACK
The Kordz PRO Series SlimCat™ CAT6 Network Cable is an industry-leading, highly flexible network cable designed for high-density installations. The slim 4.0mm diameter CAT6 U/UTP cable reduces bulk and makes installation easier whilst delivering IEEE802.3bt PoE++ at 100W and 1Gbps network connectivity up to 50 metres.
FEATURES
With a slim 4.0mm diameter U/UTP form factor and a recommended bend radius of just 32mm, the cable enables wired network connectivity to be delivered in a variety of challenging installation applications. PRO SlimCat™ network cables also offer essential space saving advantages in dense rack installations by halving bundle sizes. This allows
better airflow and heat dissipation, which in turn improves equipment reliability, serviceability and performance.
Fully compatible with PoE++ at 100W, together with its small cable footprint, PRO SlimCat™ network cable is ideal for easy retrofit of devices such as Wi-Fi access points and IP CCTV cameras to existing projects. Equally the cable system comes into its own when non-destructive, discrete cable running techniques are required for use in historic
buildings or other challenging retrofit installs. Complete the PRO SlimCat™ end-to-end system by pairing the cable with the corresponding PRO SlimCat™ RJ45 Crimp Connectors and Keystone RJ45 Sockets to ensure reliable, compact connectivity in your next installation.
Delivers ANSI/TIA-568.2-D Category 6 permanent link performance up to 50m, ideal for small and medium size
installations
Space-saving U/UTP design, enabling reliable wired networks to the places other systems can't reach
Reducing bundle sizes by almost half (cross-sectional area)
IEEE802.3bt 100W PoE++ capable
Simultaneous UL444 CM and CPR Dca fire rating for full compliance with US and EU safety requirements
Conveniently packaged in a Reel-in-Box delivery system that's easy to identify in a van or on-site
AS/NZS S008:2010 compliant
RoHS compliant
SPECIFICATIONS
Colour: Black
CONSTRUCTION
Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
Insulation: Polyethylene, 0.61±0.1 mm
Twisting: 4 Twisted pairs of conductors, not bonded
Twisted Pair Colour Code: 1: white / blue 2: white-orange / orange 3: white / green 4: white-brown / brown
Shielding: Unshielded (U/UTP)
Jacket Material: FRLSZH composite
Outer Diameter: 4.0 ± 0.5 mm
MECHANICAL
Minimum Bend Radius: Without load ≥ 16.0 mm; with load ≥ 32.0 mm
Temperature Range: During operation -20 °C to 60°C; During installation 0°C to 50°C
ELECTRICAL
DC Resistance: Max. 23.6 Ω/100 m at 20°C
Resistance Unbalance: Max. 4% at 20°C
Insulation Resistance (500V): Min. 5000 MΩ/km at 20°C
Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
Capacitance Unbalance (Pair to ground): Max. 330 pf/100 m at 1 kHz
Nominal Velocity of Propagation: Nom. 67%
Test Voltage (DC, 1min): 1 kV / 1 min
PACKAGE CONTENTS
1 x Kordz Pro Slimcat Network Cable Category 6 305M Black
