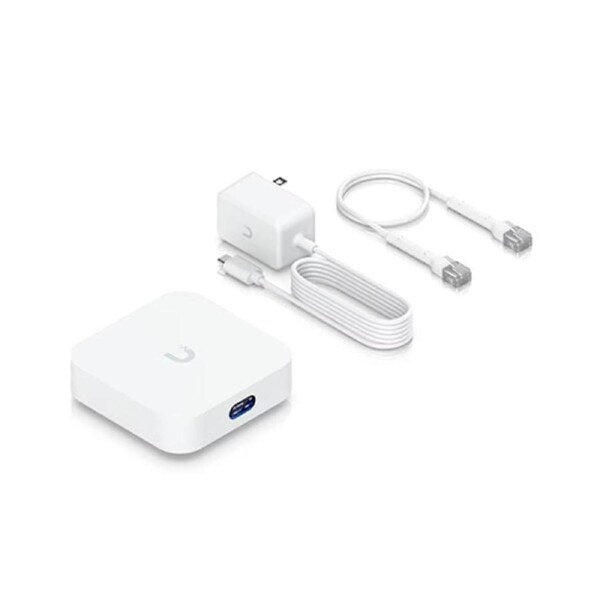

Ubiquiti Unifi Powerfully Compact With Wifi 6 Access Point
UBIQUITI UNIFI POWERFULLY COMPACT UNIFI CLOUD GATEWAY WITH WIFI 6 ACCESS POINT
Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.
FEATURES
Built-in WiFi 6 AP
140 m² (1,500 ft²) single-unit coverage
60+ connected WiFi devices
(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port to extend network
0.96" LCM status display
Manages up to four additional UniFi Network devices when operated as a gateway
Managed with UniFi Network 8.0.7 and later
SPECIFICATIONS
Management interface: Ethernet
Bluetooth
Networking interface LAN:
(1) GbE RJ45 port
WAN:
(1) GbE RJ45 port
Power method: USB type C (5V DC/3A)
Max. power consumption: 10W
Max. TX power
2.4 GHz: 22 dBm
5 GHz: 25 dBm
MIMO
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz: 573.5 Mbps
5 GHz: 2.4 Gbps
Antenna gain
2.4 GHz: 4 dBi
5 GHz: 5.15 dBi
Antennas: (2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
LCM display: 0.96" status display
Button: Factory reset
Operating temperature: -10 to 45° C (14 to 113° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Gateway Features
Performance: WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security: Application-aware firewall rules
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking: License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Software
WiFi standards: 802.11a/b/g/n/ac/ax
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: Console mode: 3 per band
Standard AP: 8 per band
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 60+
Zero wait DFS: Yes
Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network: Version 8.0.7 and later
Dimensions: 98 x 98 x 30 mm
Weight: 302 g
Enclosure material: Polycarbonate
PACKAGE CONTENT
1 x Ubiquiti Unifi Powerfully Compact With Wifi 6 Access Point
