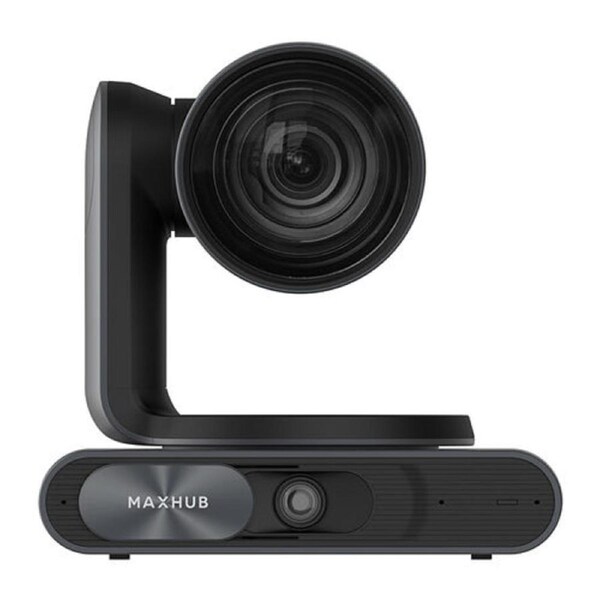

MAXHUB P30 4K PTZ Camera

Delivery varies by location, please see the expected timeframe to receive your product below:

• Metro: 1-2 business days
• Regional: 2-6 business days

Small items can be delivered to PO Box addresses or Parcel Lockers.

Change of Mind Returns:

Most products come with a 30 day change of mind policy. Please contact us via your MyDeal Account for return approval.

Please Note:

• All unwanted items must be unopened, undamaged and in saleable condition with no writing, labels or sticky tape on package boxes otherwise the request may be rejected
• Postage is paid by the customer
• We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery
• Fees may apply

Warranty Claims:

Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us via your MyDeal Account to raise a warranty claim.

• Dual Lens:
  4K Camera 12x Optical Zoom AI Powered. 120° FOV wide angle lens detects participants in real-time while directing the PTZ Camera with best view.

• 12x Optical Zoom:
  The 12X optical zoom powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality output.

• AI Power:
  Auto Framing
  Speaker Tracking
  Presenter Tracking

• Manage And Control
  Remotely manage and control via MAXHUB Pivot or room control on MAXHUB Microsoft Teams Rooms products.

• Privacy Guarantee:
  When not in use PTZ camera tilts downward and electric privacy cover would remain closed.

• Flexible Installation:
  With PoE+ a single Cat5e/Cat6e cable supports IP Streaming and power.

Dual Camera

• PTZ Camera
  • Image sensor: Sony 4K 8.42M pixel
  • Video outputs (USB 3.0): H.264/MJEPG up to
                                         YUV up to 1080p@30fps
  • Video outputs (USB 2.0) H.264/MJEPG up to 1080p@30fps ;
  • Video outputs (HDMI) H.264/MJEPG up to 2160@30fps ;
  • Video outputs (IP) H.264/MJEPG up to 2160p@30fps (first stream);
                               H.264/MJEPG up to 72p@30fps (second stream)
  • Optical zoom 12 x
  • Digital zoom 3 x
  • FOV: DFOV 90°/ HFOV 80°/ VFOV 49.2°
  • Lens focal length: 4.8mm ~ 57.8mm
  • Lens F#: 1.8 ~ 3.6
  • Motorized Pan & tilt: Pan: ±170° Tilt: ±90°;
  • Preset number: 10 via IR remote 128 via RS232
  • Image flip and image mirror: Yes
• Panoramic Camera
  • 8MP Sony Sensor
  • 120° DFOV
  • Manual Tilt: ± 10°
  • Electric Privacy Cover
  • Camera LED Indicator

AI Features

• Auto Framing
• Speaker Tracking
• Presenter Tracking

IO Ports

• USB 2.0 Type-A ×1 (host)
• Mic in (3.5mm) ×1
• HDMI 1.4 out ×1
• RJ45 ×1 (IP Steam POE+)
• RS232 ×1 (VISCA/Pelco-D/Pelco-P protocol)
• 1 × Security Lock Slot

• UC P30 unit × 1
• USB Cable C-A (5m) × 1
• Power Adapter × 1
• Remote Control × 1
• USB 3.0 Type-C ×1 (Device)
• Mounting kits × 1
• Quick Start guide × 1
