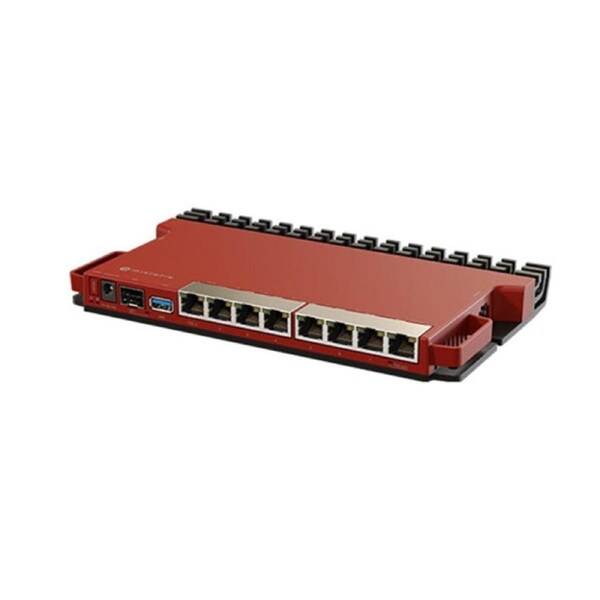

Mikrotik Poe In Out 8Xgbe Sfp 2 Core Arm Cpu

MIKROTIK POE IN OUT, 8XGBE, 1X2.5G SFP, 2 CORE ARM CPU

L009 is more than just a router. This product line is up to 4 times faster than Mikrotik RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support.

There are three main reasons to choose the Mikrotik L009: better performance, more features, and some interesting quality-of-life improvements. Let's start with the raw power and performance improvements.

Mikrotik L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

Mikrotik L009 is up to 4 times faster than Mikrotik RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.

All the ports are now Gigabit Ethernet ports. There's PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there's PoE-Out* on the last port - for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds - the 2.5G capability makes a sysadmin's life so much easier- there's a console port for quick direct-access configuration!

At the heart of it all we have a speedy Marvell Peridot Switchchip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. That means - countless configurations with no bottlenecks!

Mikrotiks new enclosure is a spectacular innovation on its own. It's the same form-factor you might have seen with our highly sought-after Mikrotik RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But here's the fun part: with a simple set of accessories, you can fit up to four of these routers in a single 1U rackmount space.

Here at MikroTik, we're the world champions of server room tetris. So here's our latest lifehack for the most efficient server rooms: grab an RB5009 with PoE-out ports. And mount it together with seven L009 routers in just two 1U rackmount spaces. You'll become a living legend among system administrators, setting a new example of efficient space management and simple, reliable powering.

SPECIFICATIONS

Product code: L009UiGS-RM
Architecture: ARM 64bit
CPU: IPQ-5018
CPU core count: 2
CPU nominal frequency: 800 MHz
Switch chip model: 88E6190
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 512 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Ethernet
10/100/1000 Ethernet ports: 8
Number of 1G Ethernet ports with PoE-out: 1
Fiber
Details
SFP ports: 1 (2.5G supported)

Peripherals
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1.5

Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 24-56 V
Max power consumption:45 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 24-56 V

PoE-out
PoE-out ports: Ether8
PoE out    Passive PoE
Max out per port output (input 18-30 V:    1 A
Max out per port output (input 30-57 V): 450 mA
Max total out (A): 1.0 A
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: 20
Other
Mode button: Yes

PACKAGE CONTENTS

1 x Mikrotik Poe In Out 8Xgbe Sfp 2 Core Arm Cpu
