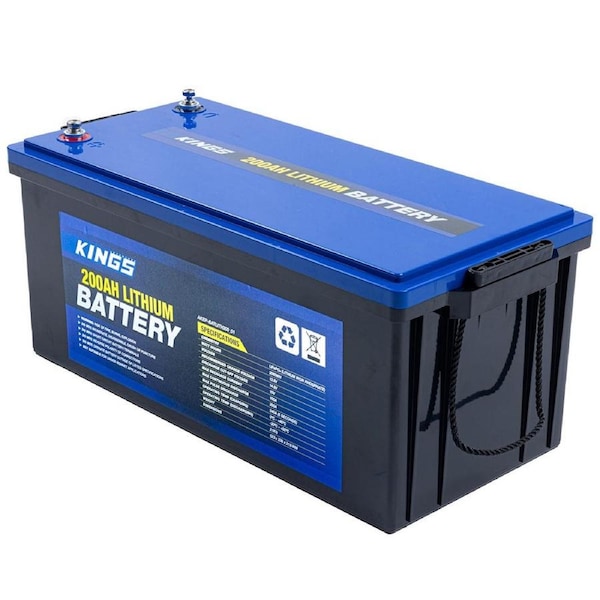

Kings 200Ah Lithium Battery 12V LiFePO4 Prismatic Cell Quality integrated BMS
• The Battery Management System (BMS) ensures safe and reliable operation. The quality BMS in this Adventure Kings 200Ah deep cycle lithium battery is rated to output a continuous 200 amps, meaning you can easily connect and power any Kings inverter to run any 240V gear without a worry in the world!
• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) the 200 ah lithium batteries use Lithium Iron Phosphate (LiFePO4) cell chemistry. You can connect up to 2 deep cycle lithium batteries together in parallel to double the rated capacity, or connect up to 4 lithium batteries in series for increased voltage, the choice is yours!
• Adventure Kings deep cycle lithium batteries have high power output and a long battery lifetime. We recommend that lithium batteries are discharged to a maximum of 80% of their rated capacity (in a nutshell you should recharge the battery when it has 20% of its power left). You can do this frequently without affecting the battery's long term life. In fact lithium batteries will last over 2000+ cycles.
• Adventure Kings deep cycle lithium batteries use Lithium Iron Phosphate (LiFePO4) cell chemistry. At Adventure Kings we vigorously test deep cycle lithium batteries and ensure that they are certified according to Australian lithium battery safety standards. This is why Adventure Kings deep cycle lithium batteries are renowned for their safety, reliability, high power output, and long life.
KINGS 12V 200AH BATTERY
Chemistry LiFePO4
Rated Capacity 200Ah
Rated Energy 2560Wh
Nominal Voltage 12.8V
Recommended Charging Voltage 14.6V
Rated Float Charge Voltage 14.2V
Low Voltage Cut-off 10V
Max Continous Discharge Current 200A
Max Pulse Discharge Current (5 Seconds) 500A
Max Recommended Charge Current 100A
Max Charging Current 200A
Operating Temperature - Charging 0 to 50°C
Operating Temperature - Discharging -20 to 60°C
Life Cycles >2000
Cell Construction Prismatic
Case Material ABS
Terminals M8 Threaded
Hardware Included 2 X M8 Bolts, 2 x Flat Washers, 2 x Spring Washers
Included Wiring N/A
Allowed Batteries Connected in Series Bank (Same Batch) 4
Allowed Batteries Connected in Parallel (Same Batch) 2
Dimension (LxWxH) ±5mm 525 x 220 x 220mm (520x241x224 or 530x206x216)
Weight ±1kg 20.2kg
Warranty 3 Years
